Alarm Module: Service and Repair

THEFT DETERRENT CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

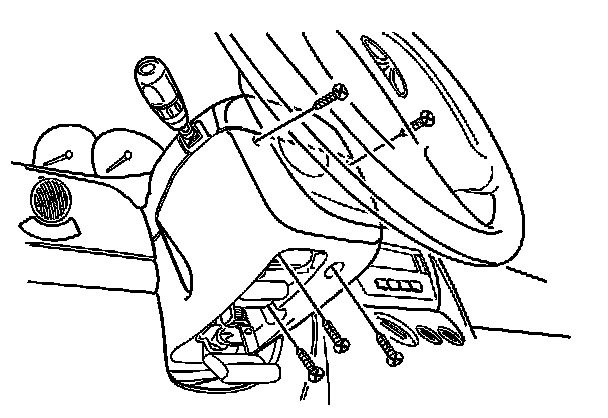

1. Remove the instrument panel lower cover.

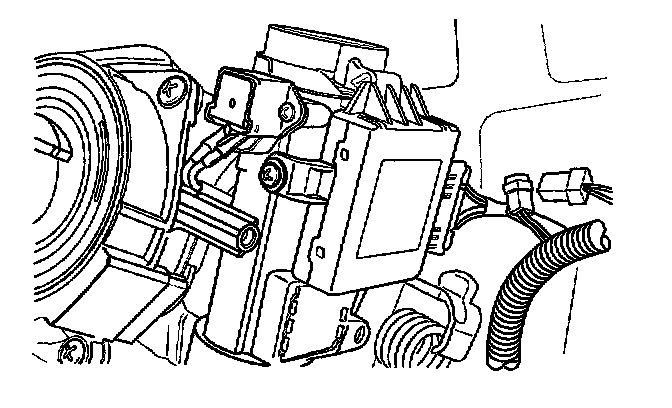

2. Disconnect the electrical connector from the immobilizer control unit.




3. Remove the immobilizer control unit.

INSTALLATION PROCEDURE

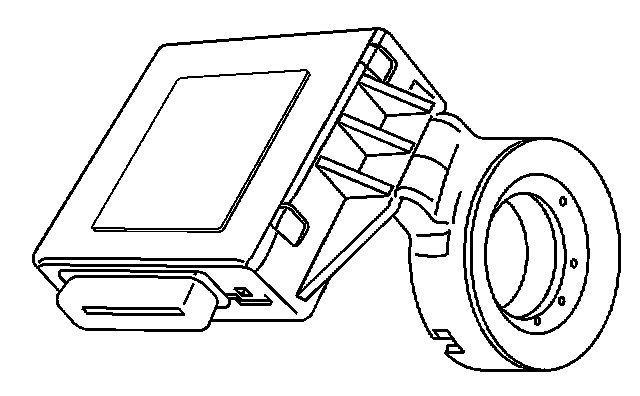

1. Install the immobilizer control unit.

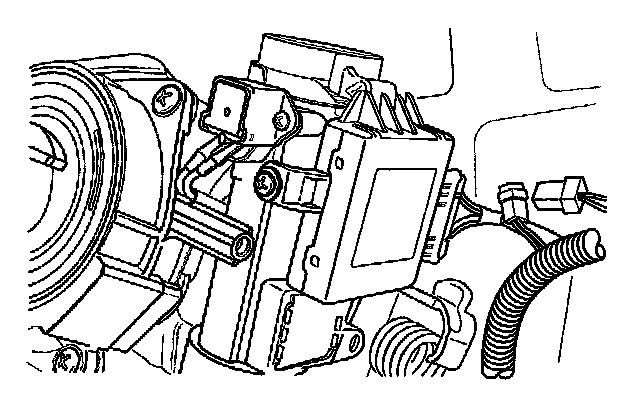

2. Connect the electrical connector to the immobilizer control unit.

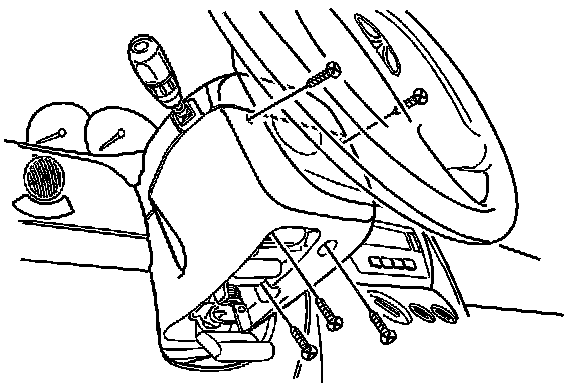

3. Install the instrument panel lower cover.

IMPORTANT: After replacing the immobilizer, the keys must be re-authorized using the key coding procedure.
