General Information

VEHICLE IDENTIFICATION

VIN PLATE LOCATION (EXCEPT NORTH AMERICA)

The vehicle identification number (VIN) plate is attached to the top of the front panel support.

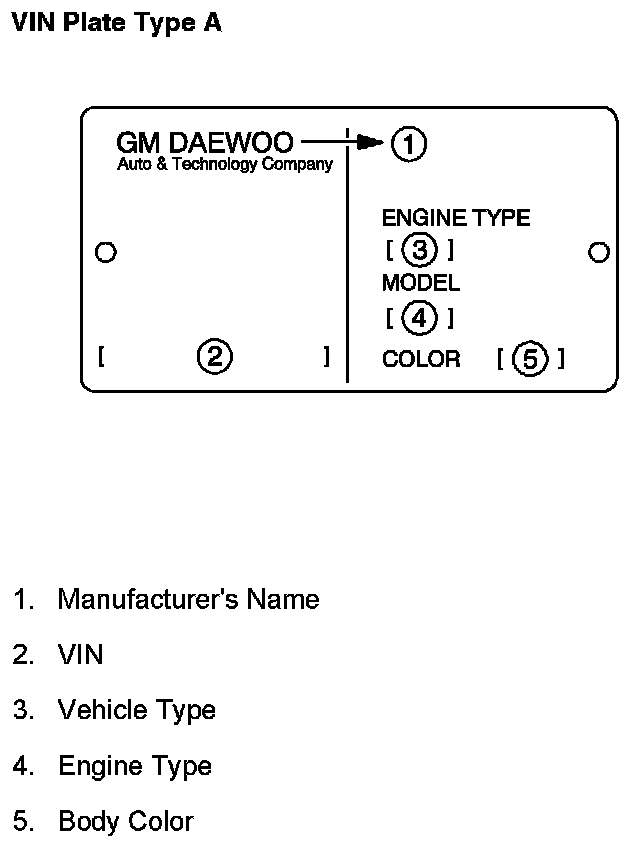

VIN Plate Type A:

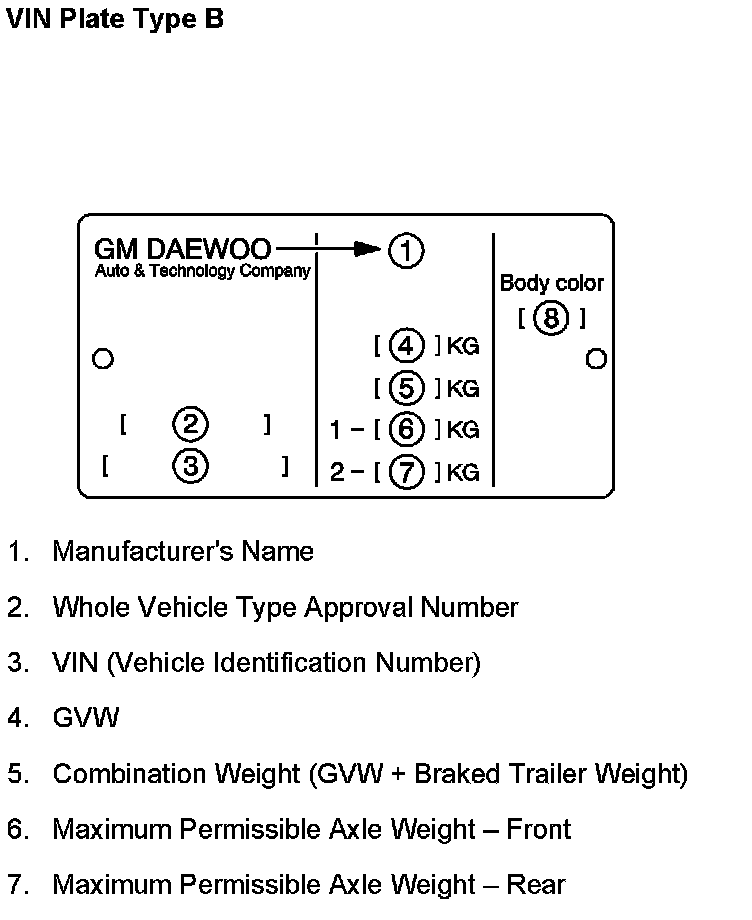

VIN Plate Type B:

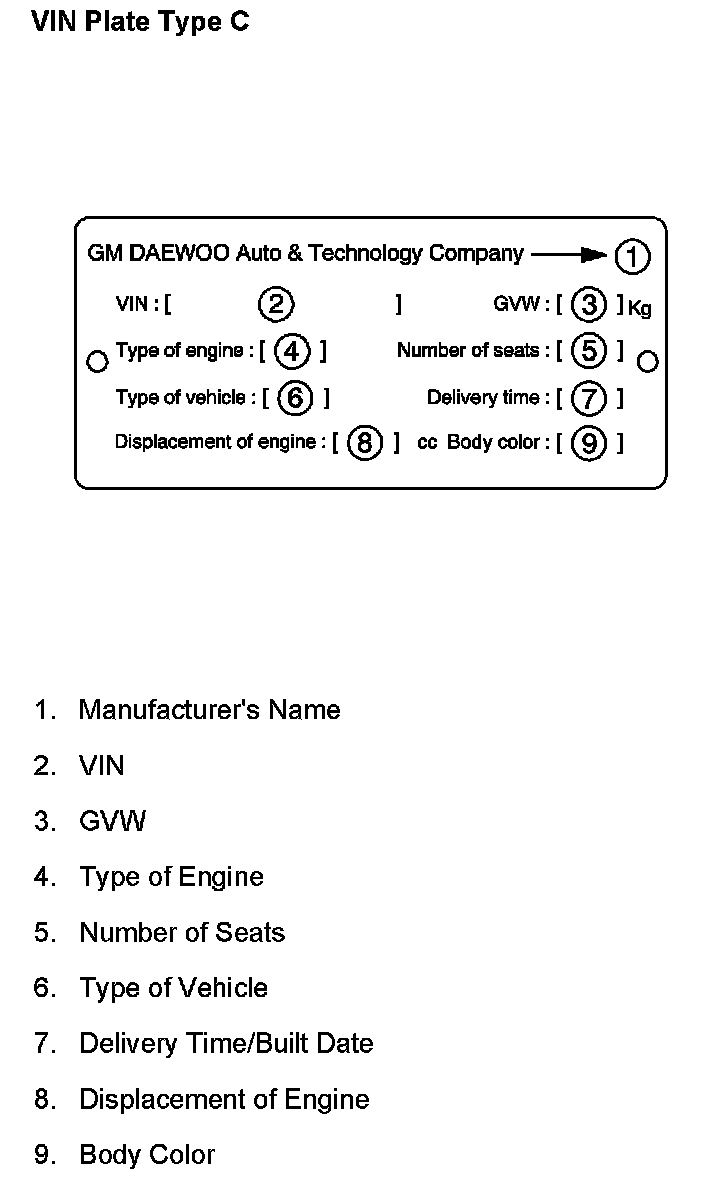

VIN Plate Type C:

VIN PLATE TYPE

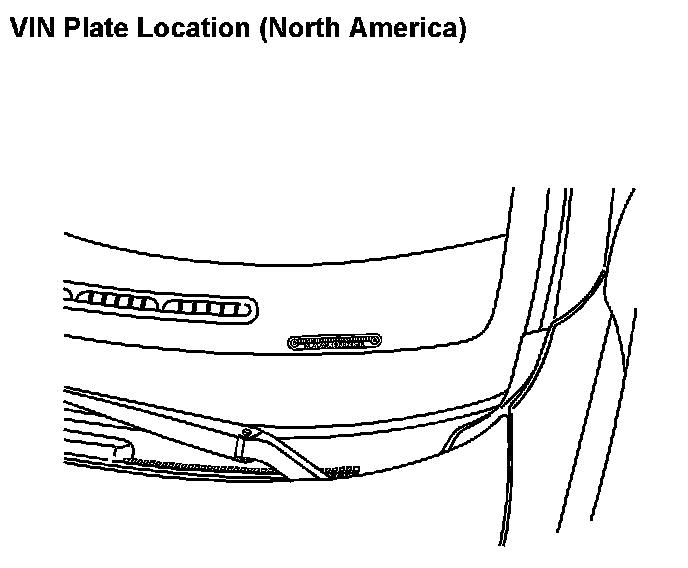

VIN PLATE LOCATION (NORTH AMERICA)

The VIN plate is attached to the top of the driver's side of the instrument panel.

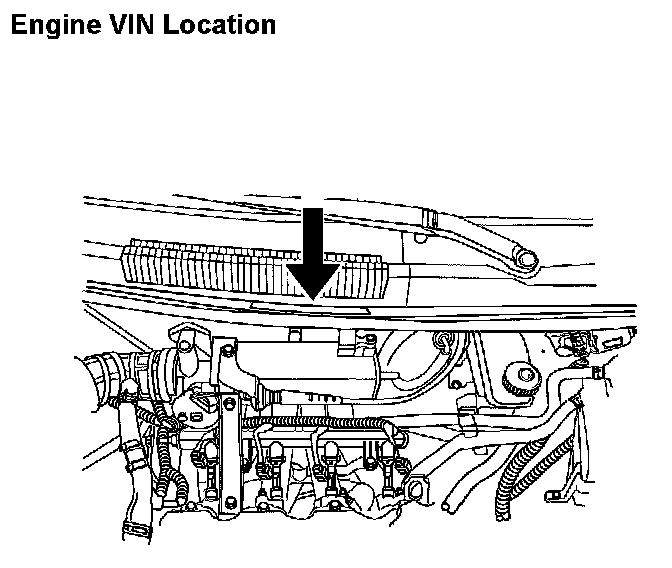

ENGINE VIN LOCATION

The engraved VIN is located on the top right side of the bulkhead.
