Removal

COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL

TOOLS REQUIRED
J 33013-B Hub and Drive Plate Remover/Installer
J 33027-A Clutch Hub Holding Tool
J 42428 Compressor Holding Fixture

DISASSEMBLY PROCEDURE




1. Remove the compressor.
2. Install the J 42428 to the compressor and hold the compressor holding fixture using a bench vise.

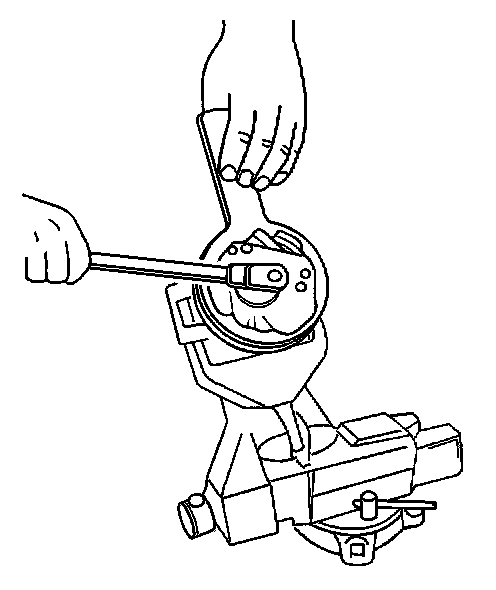

3. Use the J 33027-A to keep the clutch drive plate and the hub assembly from turning. Remove the shaft nut.

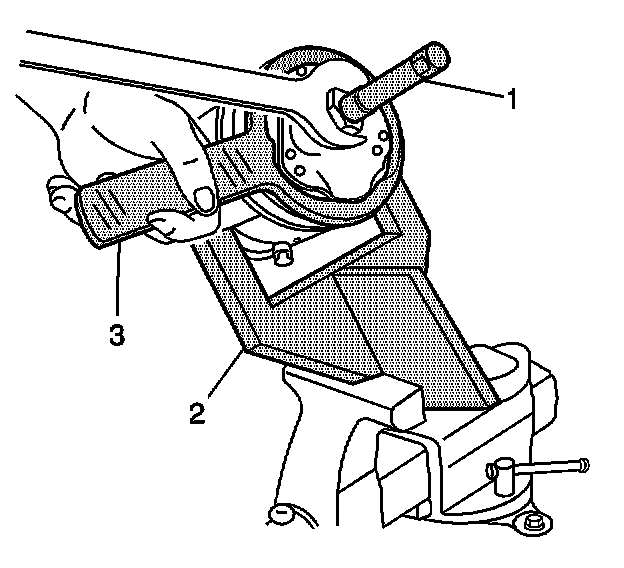

4. Thread the J 33013-B (1) into the hub. Hold the body of the remover with a wrench and turn the center screw into the remover body to remove the clutch drive plate and hub assembly.
5. Remove the clutch hub key. Retain the key for assembly (3).
