Fluid - A/T: Service and Repair

Draining Transmission Fluid

Draining Procedure






1. Notice: Refer to Vehicle Lifting and Jacking Notice in Service Precautions.

Raise and support the vehicle
2. Place a suitable fluid drainage container under the transaxle.

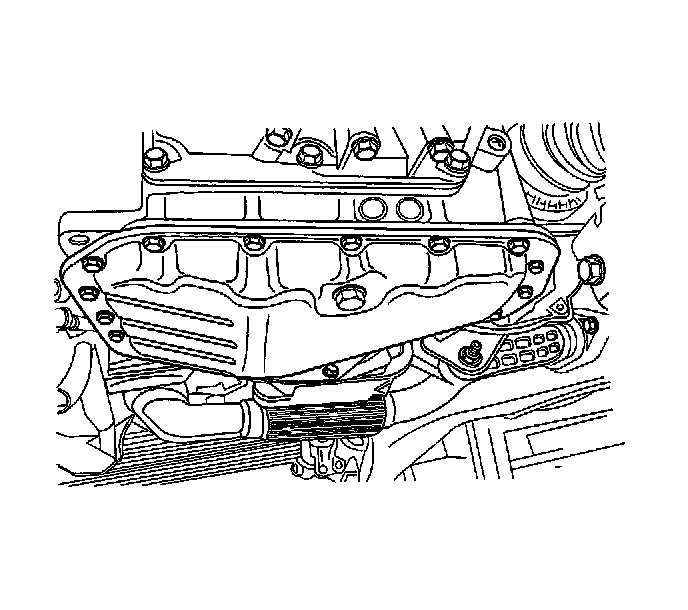

3. Remove the fluid drain plug. Allow the fluid to drain completely.
4. Clean the drain plug threads.

5. Notice: Refer to Fastener Notice in Service Precautions.

Install the fluid drain plug.
Tighten the fluid drain plug to 17 Nm (13 ft. lbs.).

Filling Procedure





1. Remove the drainage container and lower the vehicle.
2. Add 3/4 of the recommended amount of T-IV Automatic Transmission Fluid.
3. Start the engine and allow it to reach normal operating temperature.
4. Shift the gear selector through all positions.

5. Important: The correct fluid level must be between the HOT MIN (2) and the HOT MAX (1) notches on the dipstick.

Check the fluid level and add fluid until the dipstick indicates a safe level.
