Explanation of Scheduled Services
EXPLANATION OF SCHEDULED SERVICESNORMAL VEHICLE USE
The maintenance instructions contained in the maintenance schedule are based on the assumption that the vehicle will be used for the following reasons:
^ To carry passengers and cargo within the limitation indicated on the tire placard located on the edge of the driver's door.
^ To be driven on reasonable road surfaces and within legal operating limits.
EXPLANATION OF SCHEDULED MAINTENANCE SERVICES
The services listed in the maintenance schedule are further explained below. When the following maintenance services are performed, make sure all the parts are replaced and all the necessary repairs are done before driving the vehicle. Always use the proper fluid and lubricants.
DRIVE BELT INSPECTION
When a separate belt drives the power steering pump, the air conditioning compressor and the generator, inspect it for cracks, fraying, wear and proper tension. Adjust or replace the belt as needed.
ENGINE OIL AND OIL FILTER CHANGE
API CLASSIFICATIONS OF ENGINE OIL
The International Lubricant Standardization and Approval Committee (ILSAC) and American Petroleum Institute classifies engine oils according to their performance quality. Always use oil rated API-SJ (ILSAC GF-II) or better.
ENGINE OIL VISCOSITY
NOTICE: Using engine oils of any viscosity other than those viscosities recommended could result in engine damage.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operation. Lower viscosity engine oils can provide better fuel economy and cold weather performance; however, higher temperature weather conditions require higher viscosity engine oils for satisfactory lubrication. Using oils of any viscosity other than those viscosities recommended could result in engine damage.
SAE 5W-30, SAE 10W-30, SAE 15W-40 (Cold area: SAE 5W-30 Hot area: SAE 15W-40
COOLING SYSTEM SERVICE
Drain, flush and refill the system with new coolant.
FUEL MICRO-FILTER REPLACEMENT
Replace the engine fuel filter every 40 000 km (24,000 mi).
The engine fuel filter is located on the center dash panel near the brake booster.
AIR CLEANER ELEMENT REPLACEMENT
Replace the air cleaner element every 40 000 km (24,000 mi).
Replace the air cleaner more often under dusty conditions.
THROTTLE BODY MOUNTING BOLT TORQUE
Tighten the throttle body mounting bolts to 15 Nm (11.0 lb. ft.).
SPARK PLUG REPLACEMENT
Replace spark plugs with the same type.
SPARK PLUG WIRE REPLACEMENT
Clean wires and inspect them for burns, cracks or other damage. Check the wire boot fit at the DIS module and at the spark plugs. Replace the wires as needed.
BRAKE SYSTEM SERVICE
Check the disc brake pads and the drum brake linings every 10 000 km (6,000 mi) or 12 months. Inspect the pad and the lining thickness carefully. If the pads or the linings are not expected to last to the next scheduled maintenance service, replace the pads or the linings. Inspect the breather hole in the brake fluid reservoir cap to be sure it is free from dirt and the passage is open.
TRANSAXLE SERVICE
The manual transaxle fluid does not require changing.

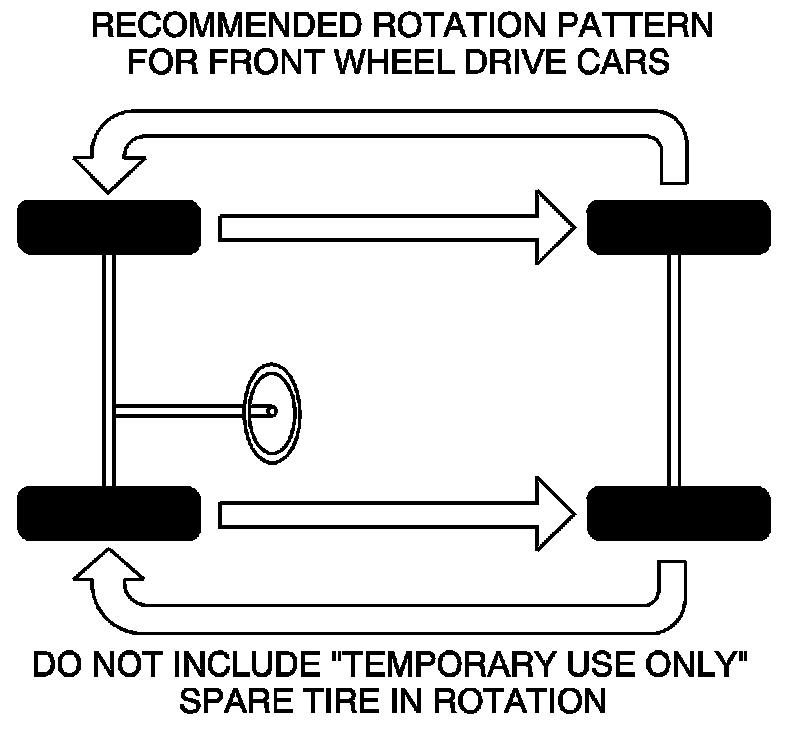

TIRE AND WHEEL INSPECTION AND ROTATION
Check the tires for abnormal wear or damage. To equalize wear and obtain maximum tire life, rotate the tires. If irregular or premature wear exists, check the wheel alignment and check for damaged wheels. While the tires and wheels are removed, inspect the brakes.
