Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Instrument Panel Fuse Block Views
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block

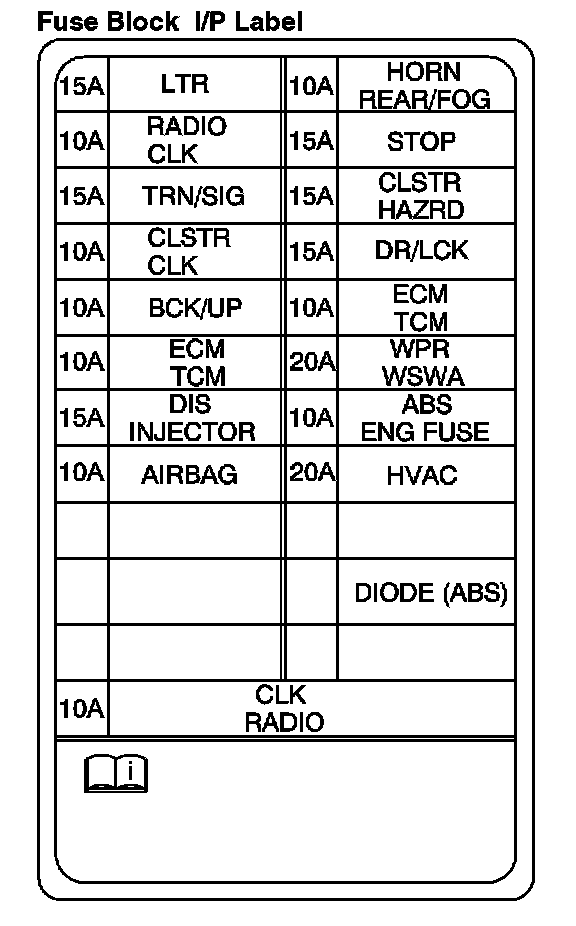

Location View:

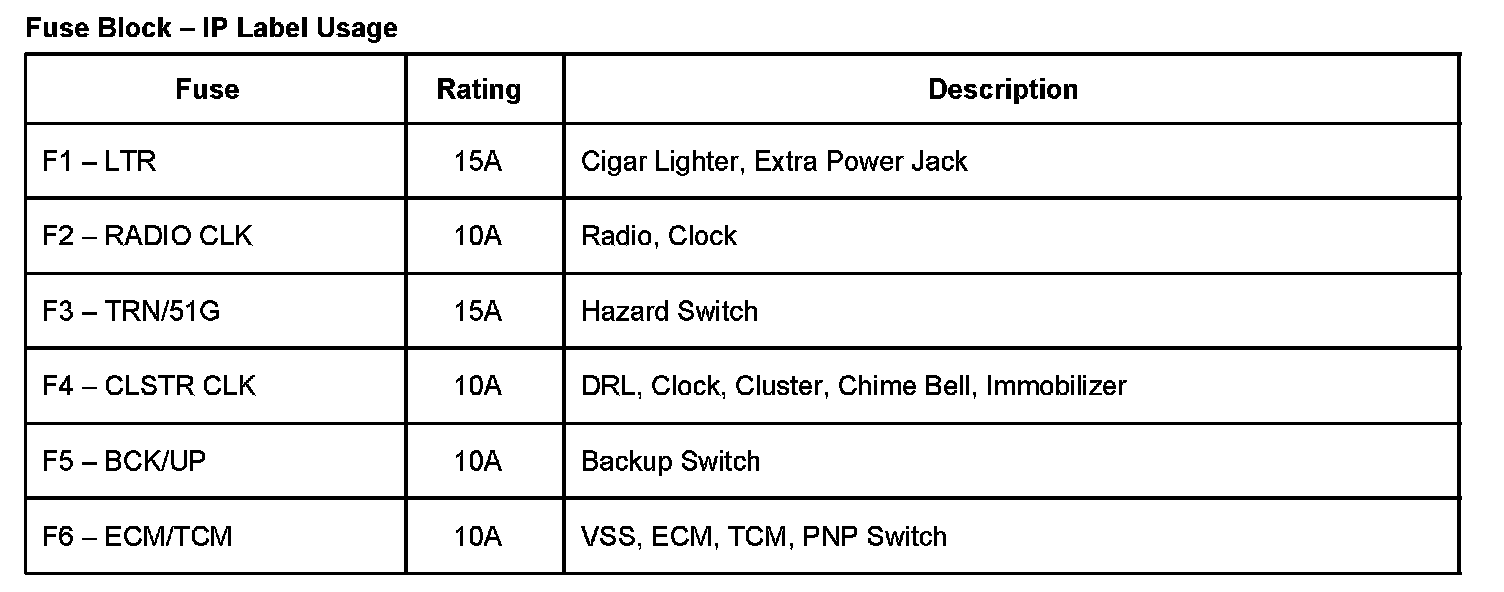

Application Table Part 1:

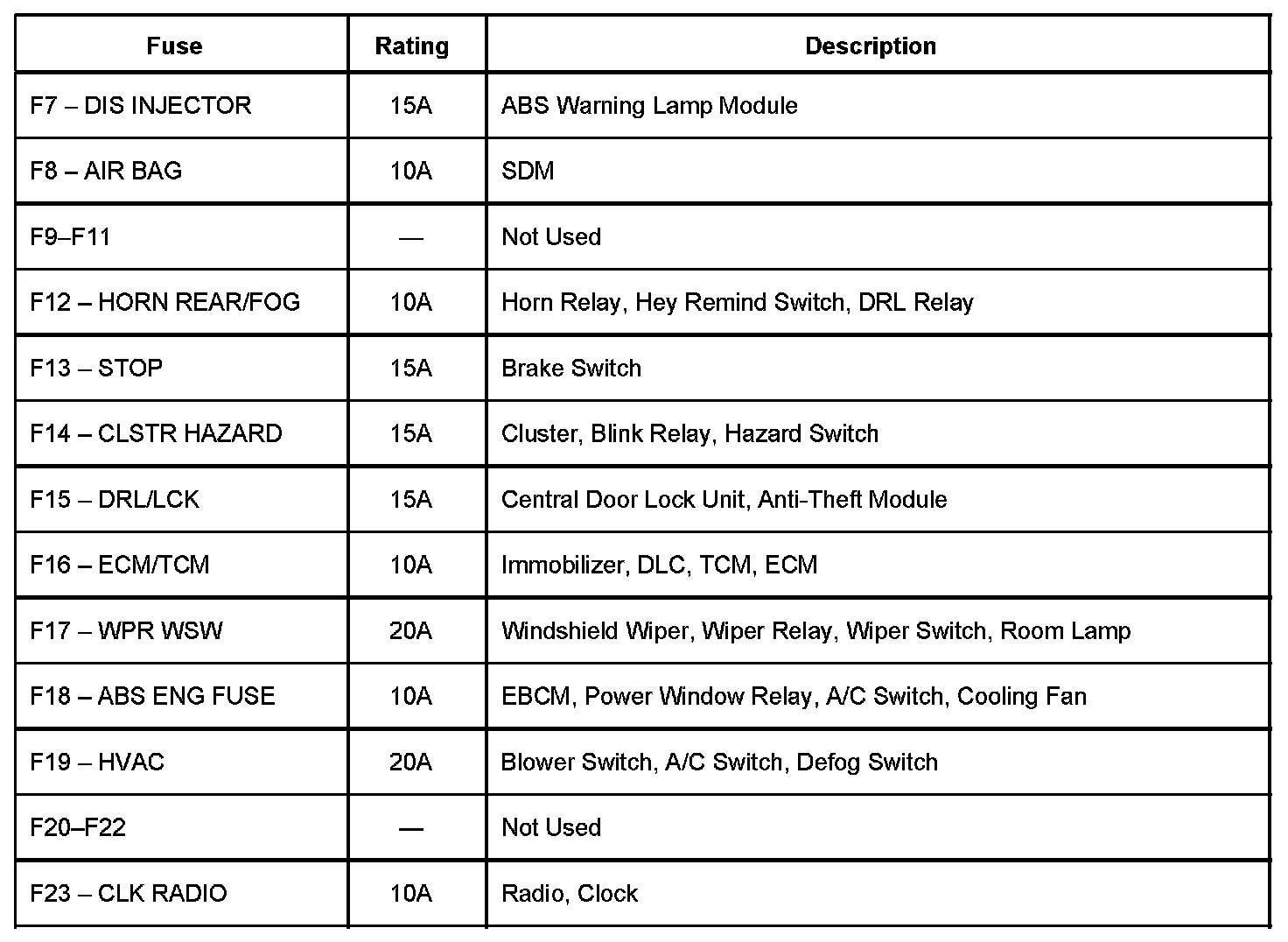

Application Table Part 2:
