Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

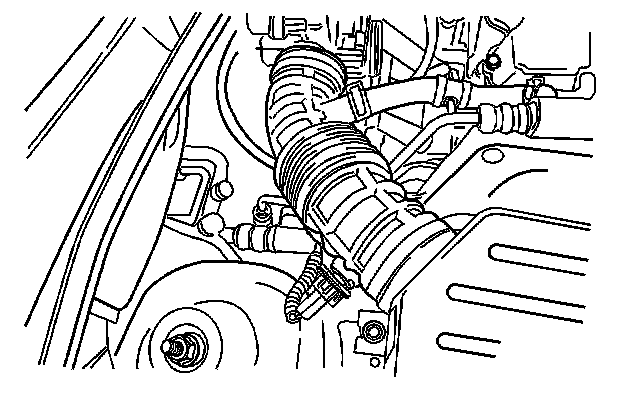

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature (IAT) sensor connector.
3. Remove the IAT sensor by pulling it out of the air intake tube.

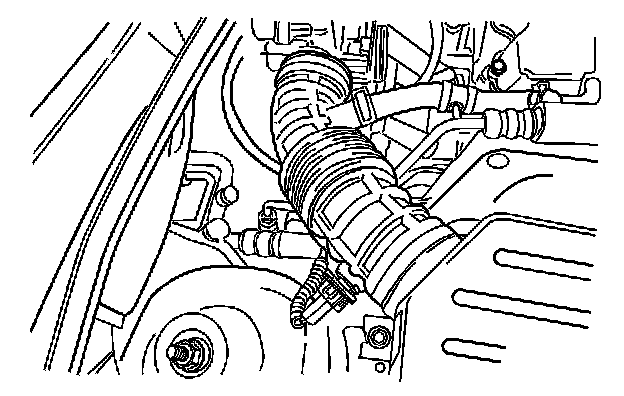

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Insert the IAT sensor into the air intake tube.
2. Connect the IAT sensor connector.
3. Connect the negative battery cable.
