Crankshaft Position Sensor: Locations

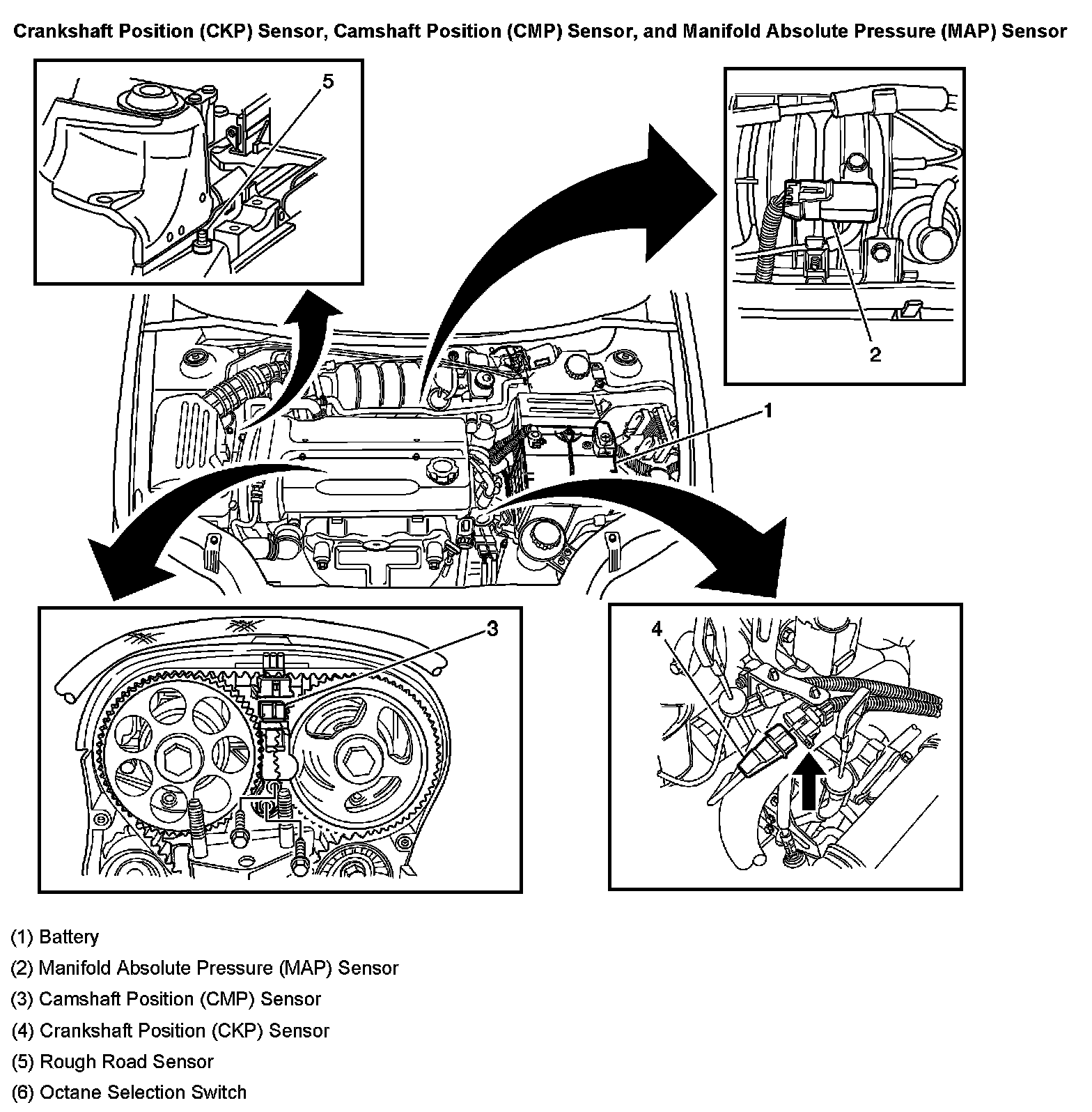

Crankshaft Position (CKP) Sensor, Camshaft Position (CMP) Sensor, And Manifold Absolute Pressure (MAP) Sensor:
