Sunroof / Moonroof Module: Service and Repair
SUNROOF MODULE ASSEMBLY REPLACEMENTREMOVAL PROCEDURE
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
Battery Negative Cable Disconnect/Connect
1. Disconnect the negative battery cable.
2. Remove the headliner.
3. Remove the drain hoses.
4. Remove the strap.

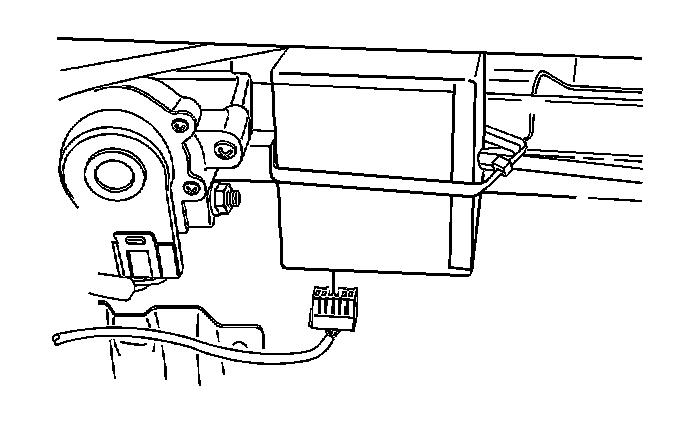

5. Disconnect the electrical connector.
6. Remove the bolts and the motor.
7. Disconnect the electrical connector.
8. Remove the strap.
9. Remove the motor control module.

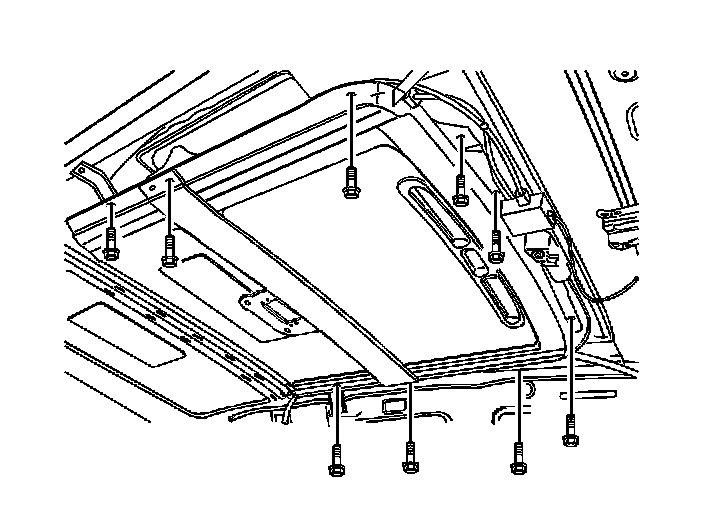

10. Remove the bolts and the sunroof housing from the vehicle.

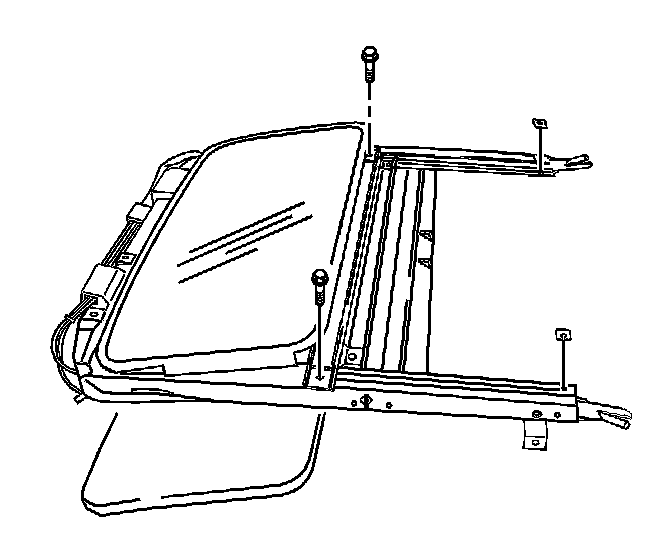

11. Remove the drain channel.
12. Remove the sunshade.
INSTALLATION PROCEDURE

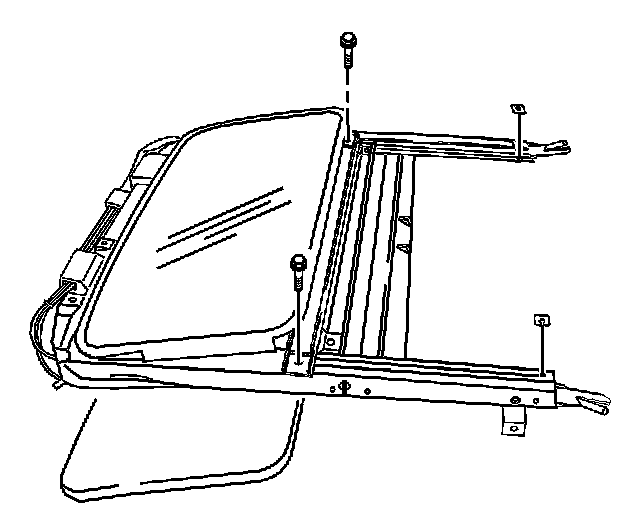

1. Install the sunshade.
NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice
2. Install the sunroof housing.
Tighten
Tighten the sunroof housing bolts to 7 N.m (62 lb in).

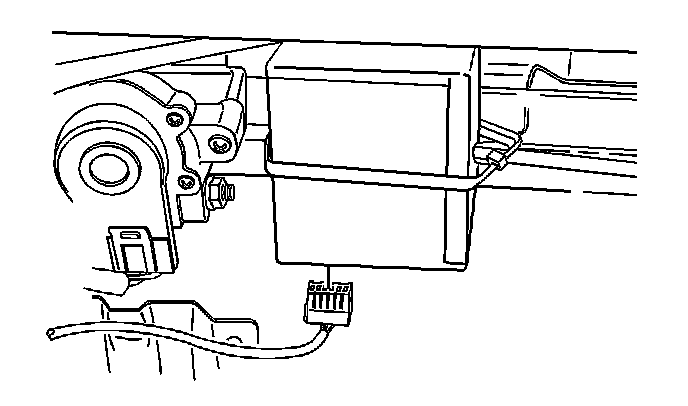

3. Install the motor control module.

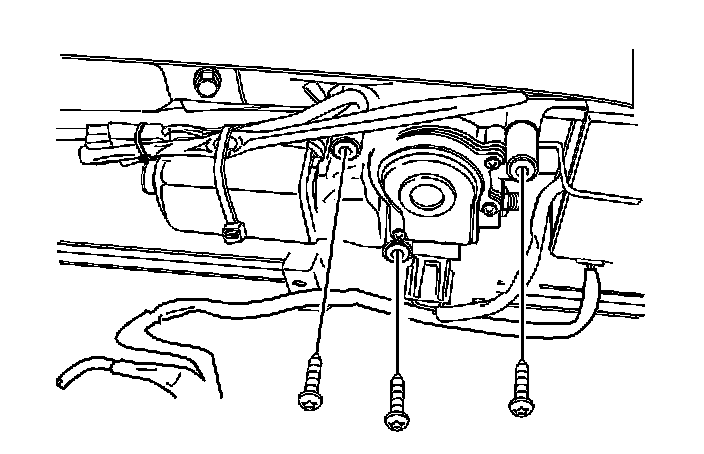

4. Install the motor.
Tighten
Tighten the sunroof motor screws to 5 N.m (44 lb in).
5. Install the drain hoses.
6. Install the headliner.
7. Connect the negative battery cable.
