Keyless Entry - System Inoperative
Bulletin No.: 04-08-52-004Date: May 14, 2004
TECHNICAL
Subject:
Remote Keyless Entry (RKE) System Inoperative (Replace Fuse)
Models:
2004 Chevrolet Aveo
with Remote Keyless Entry
Condition
Some customers may comment that the doors will not lock or unlock even though the lock or unlock button on the transmitter was pressed.
After inspection, the technician may find that the 15 amp fuse (F15) was blown.
Cause
This condition may be caused by an in-rush of current that can occur when the lock or unlock button is pressed, resulting in the designated fuse capacity being exceeded.
Correction
Replace the 15 amp fuse (F15) in the interior fuse panel with a 20 amp fuse, P/N 96234922, and replace the old label on the fuse panel cover with a new one. Close the door and verify that the RKE system functions properly.

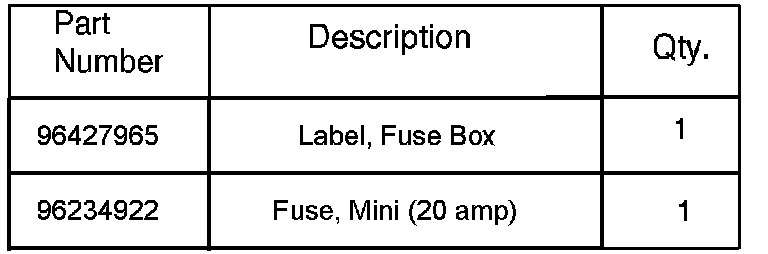

Parts Information
Parts are currently available from GMSPO.
Warranty Information

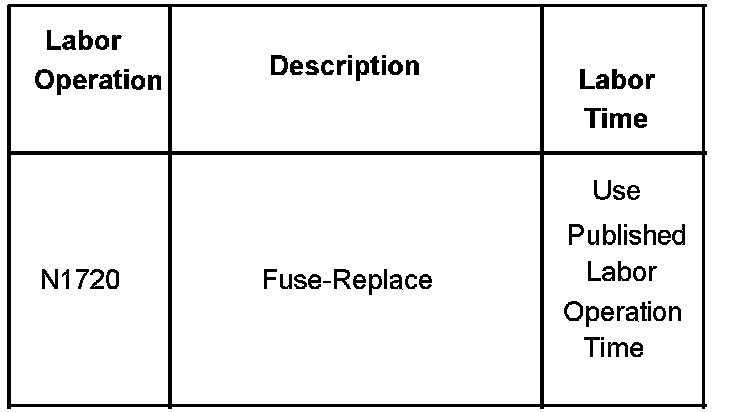

For vehicles repaired under warranty, use the table shown.
