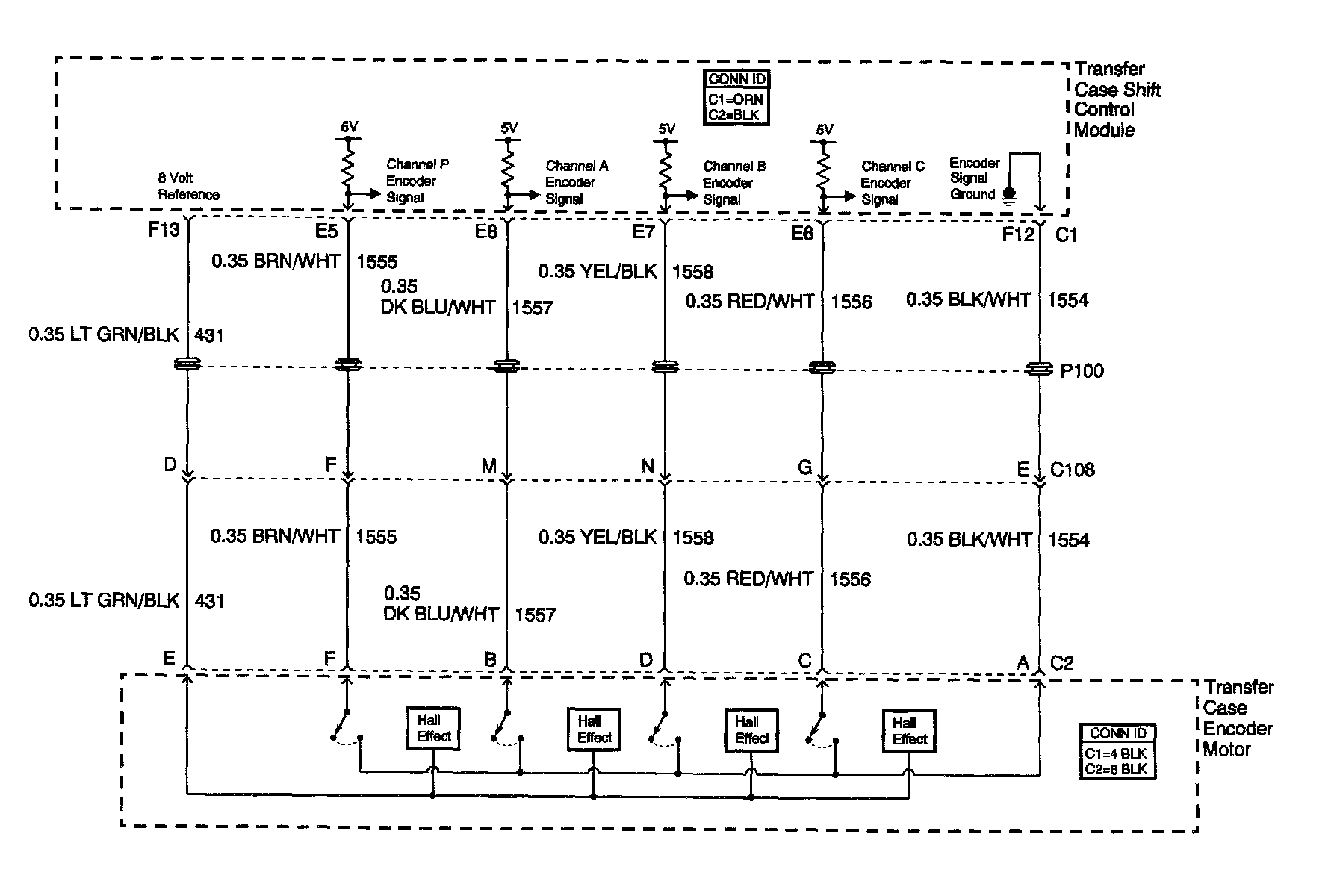

Transfer Case Control Schematics (Transfer Case Encoder Motor and Shift Control Module)

Transfer Case Control Schematics (Transfer Case Encoder Motor and Shift Control Module)
