Removal and Replacement



Power Mirror Switch Replacement

Removal Procedure




1. Remove the door trim panel.

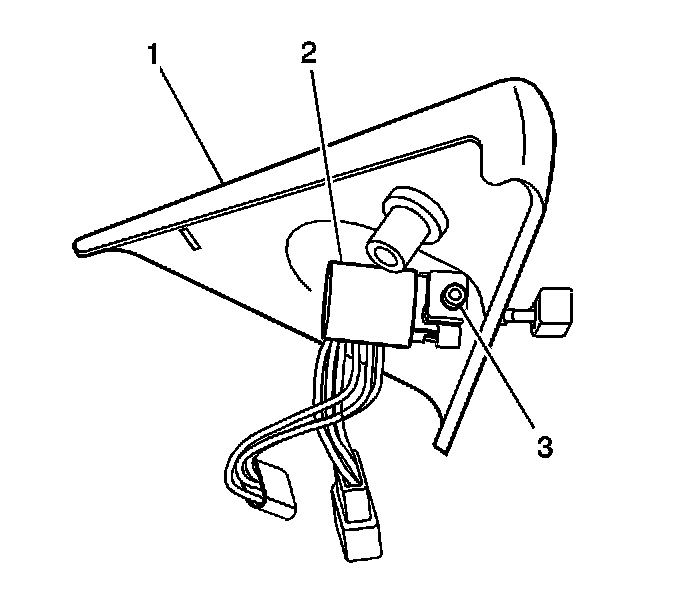

2. Disconnect the electrical connector for the power mirror switch (2).
3. Loosen the set screw (3) enough to remove the switch (2).
4. Remove the switch (2) from the upper extension trim panel (1).

Installation Procedure




1. Install the switch (2) to the trim panel (1).

Notice: Refer to Fastener Notice in Service Precautions.

2. Begin tightening the set screw (3).

Tighten the set screw to 1.4 N.m (12 lb in).

3. Connect the electrical connector to the switch (2).
4. Install the door trim panel.
