Rearview Mirror Lamp Replacement

REARVIEW MIRROR LAMP REPLACEMENT

REMOVAL PROCEDURE

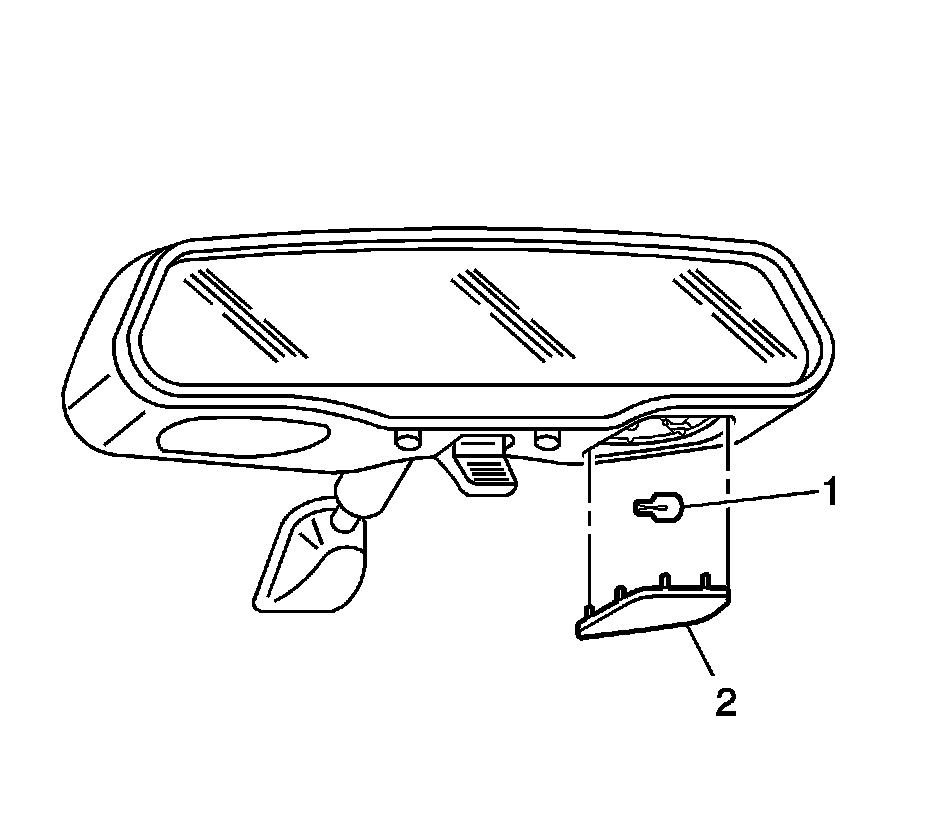

1. Using a small flat-bladed tool, release the retaining tabs for the lamp lens (2).
2. Remove the lens (2) from the rearview mirror.
3. Carefully remove the bulb (1) from the socket.

INSTALLATION PROCEDURE

1. Install the bulb (1) to the socket.
2. Align the lens (2) to the mirror.
3. Press the lens to the mirror until the retaining tabs are fully engaged.
