Power Seat Drive Cable: Service and Repair



Drive Cable Replacement - Horizontal and Vertical

Removal Procedure




1. Remove the front seat.

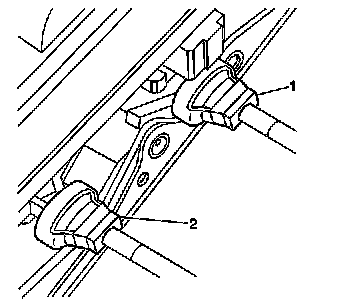

2. Squeeze the oblong connector (1, 2) for the vertical and the horizontal drive cables.
3. Pull outward on the cable to remove from the following locations:

* The motors
* The vertical and horizontal actuators

Installation Procedure




1. Install the cables to the following locations:

* The motors
* The vertical and horizontal actuators

2. Push the connectors (1, 2) into the actuators and the motors until a loud audible click is heard.
3. Install the front seat.
