Seat Back Frame: Service and Repair

SEAT BACK FRAME REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the seat back cushion cover.

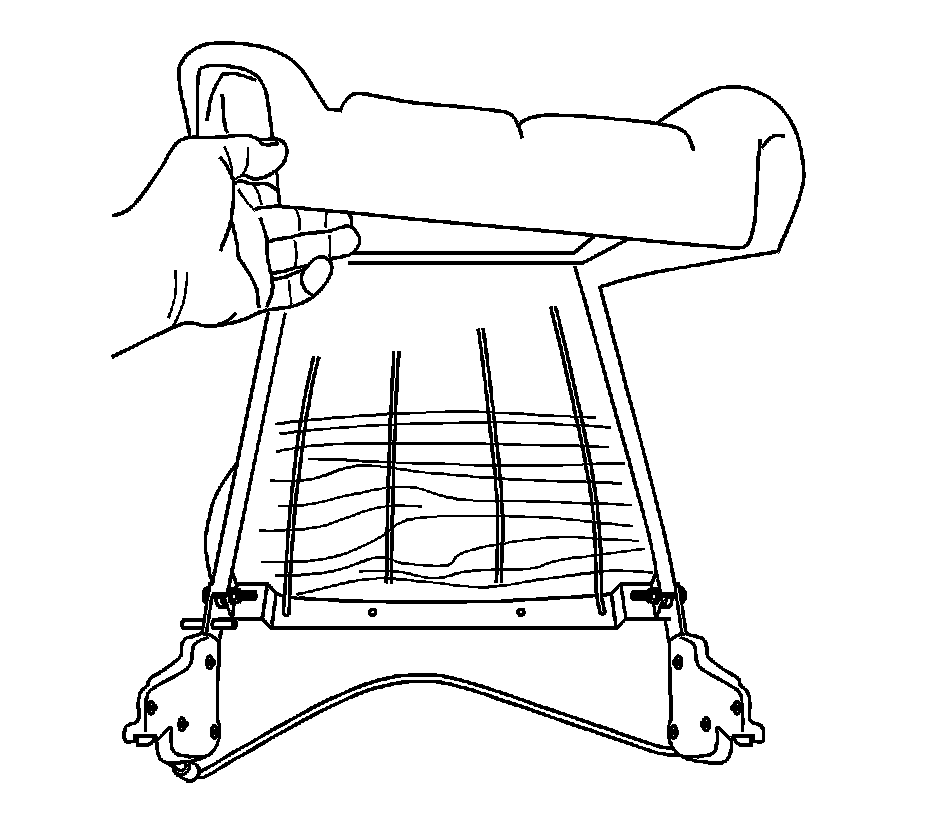

2. Remove the seat back pad from the seat back frame.
3. Remove the seat back recliner bolts.
4. Remove the seat back frame from the recliner.

INSTALLATION PROCEDURE




1. Install the seat back frame to the recliner.
2. Install the seat back recliner bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 18 N.m (13 lb ft).

3. Install the seat back pad to the seat back frame.
4. Install the seat back cushion cover.
