Seat Back Replacement - Rear

SEAT BACK REPLACEMENT - REAR

REMOVAL PROCEDURE
1. Remove the rear seat cushion from the vehicle.

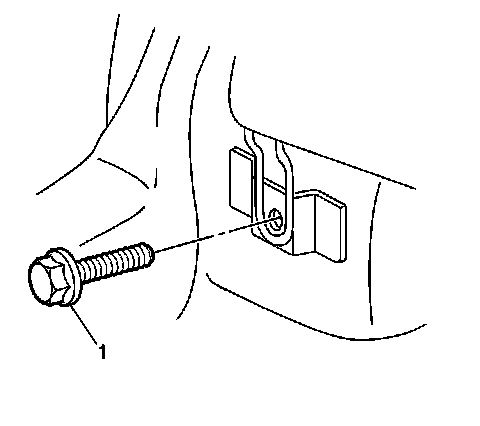

2. Remove the stationary rear seat back bolts (1) from the lower U-brackets.




3. Remove the stationary rear seat back by lifting up and disengaging the T-hooks from the access holes in the rear shelf panel.
4. Remove the stationary rear seat back from the vehicle.

INSTALLATION PROCEDURE
1. Pull the shoulder belts away from the seat back area.




2. Install the stationary rear seat back (1) into vehicle.




3. Position and engage the seat back T-hooks into the access holes in the rear shelf panel.
4. Pull forward on the top edge of the seat back along the rear shelf panel in order to align all four attaching hooks.




5. Install the seat back bolts (1) into the lower U-brackets.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolts to 16 N.m (12 lb ft).

6. Install the seat cushion into the vehicle.
