Parking Brake System: Service and Repair

Park Brake Hardware Replacement

^ Tools Required
^ J 38400 Brake Shoe Spanner and Spring Remover

Removal Procedure
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.
3. Remove the brake drum.

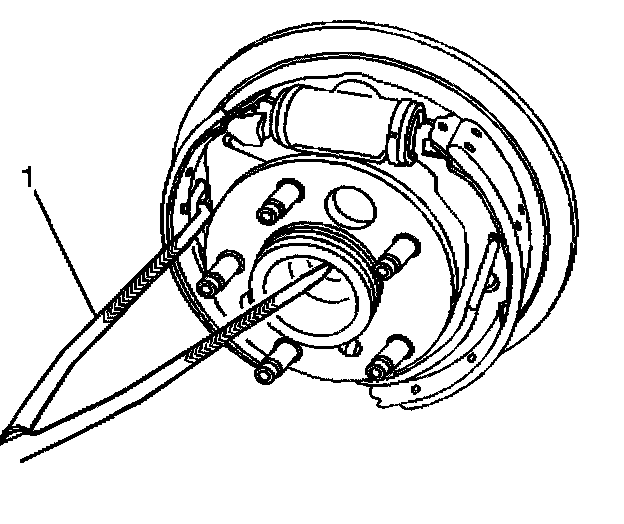

4. Position the hook end of the J38400 (1) under the universal spring and lightly pull the universal spring end out of the shoe web hole. Hold the universal spring while removing the brake shoe.
5. Disconnect the park brake lever from the brake shoe by removing the retaining clip.
6. Disconnect the park brake lever from the park brake cable.

Installation Procedure
1. Connect the park brake lever to the park brake cable.
2. Connect the park brake lever to the brake shoe and install the retaining clip.

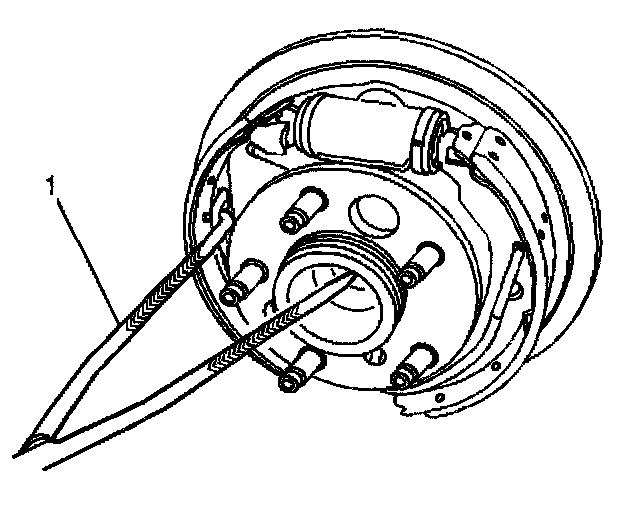

3. Position the hook end of the J38400 (1) under the universal spring and lightly pull the universal spring end out while installing the brake shoe. Ensure that the universal spring properly engages the brake shoe web hole.
4. Adjust the drum brake system.
5. Install the brake darn.
6. Install the tire and wheel assembly.
7. Lower the vehicle.
