Engine Support Fixture

Engine Support Fixture

^ Tools Required
- J 28467-B Universal Engine Support Fixture
- J 28467-501 Universal Engine Support Fixture Adapters
- J 42451 Engine Lift Bracket

1. Install the J-28467-501 to the vehicle.

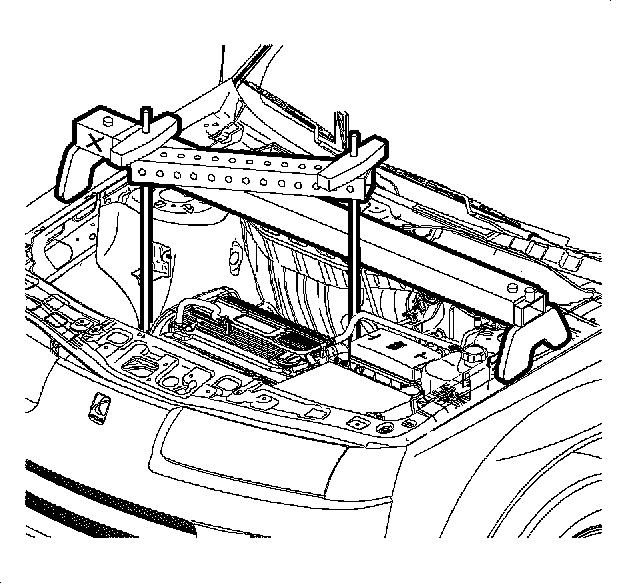

2. Install the J 28467-B .

3. Install the J 42451 or equivalent to the right rear of the cylinder head.
4. Install the J 28467-7 (2) to the engine front lift bracket.
5. Install the J 28467-8 (5) to the engine front lift bracket.
