Headlamp: Service and Repair

HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT

REMOVAL PROCEDURE




1. Open the hood.

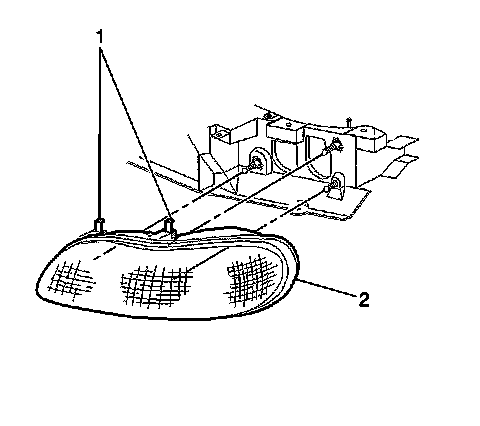

2. Hold the headlamp in place while pulling upward on the release tabs (1).
3. Remove the headlamp (2) by pulling straight forward from the headlamp mounting panel.

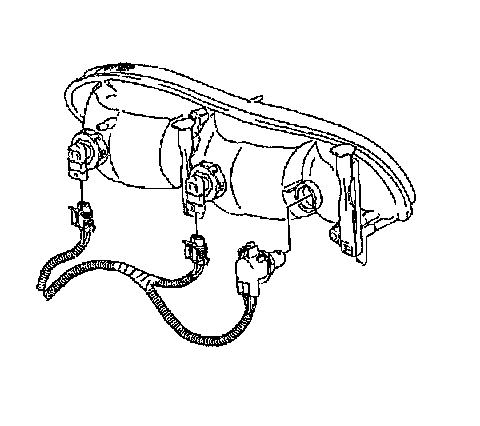

4. Disconnect the electrical connectors from the lamp sockets.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

5. Remove the headlamp, and or park lamp sockets by rotating counterclockwise.
6. Pull the headlamp, and or park bulb from the socket.

INSTALLATION PROCEDURE




1. Push the headlamp, and or park bulb into the socket.
2. Install the headlamp, and or park lamp by rotating the socket clockwise.
3. Connect the electrical connectors to the lamp sockets.




4. Install the headlamp (2) by pushing straight forward to the headlamp mounting panel.
5. Hold the headlamp in place while pushing downward on the release tabs (1).
6. Check and adjust the headlamp aim as necessary. Refer to Headlamp Aiming.
7. Close the hood.
