Horn: Service and Repair

HORN REPLACEMENT

REMOVAL PROCEDURE

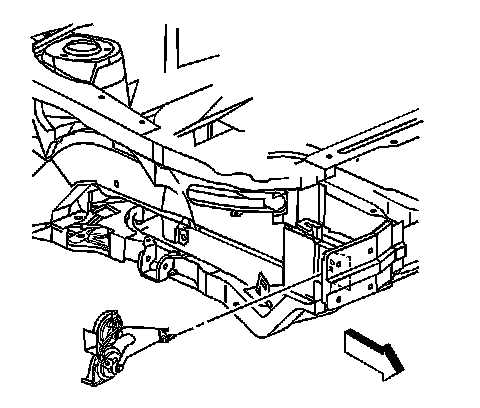

1. Remove the right headlamp assembly.

2. Disconnect the horn electrical connector.
3. Remove the horn bracket bolt.
4. Remove the horn from the front frame rail.

INSTALLATION PROCEDURE

1. Position the horn to the front frame rail.
2. Install the horn bracket bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bolt to 10 N.m (89 lb in).

3. Connect the horn electrical connector.
4. Install the right headlamp assembly.
