Marker Lamp: Service and Repair

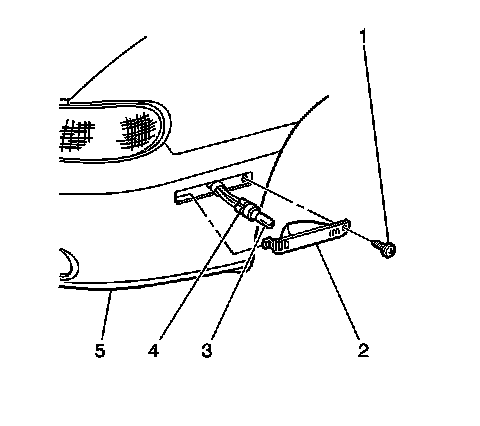

MARKER LAMP REPLACEMENT - FRONT SIDE

REMOVAL PROCEDURE




1. Remove the side marker lamp screw (1) from the sidemarker lamp (2).
2. Remove the sidemarker lamp (2) from the front fascia panel (5).
3. Remove the socket (4) from the sidemarker lamp (2).
4. Remove the bulb (3) from the socket (4).

INSTALLATION PROCEDURE




1. Install the bulb (3) to the socket (4).
2. Install the socket (4) to the sidemarker lamp (2).
3. Install the sidemarker lamp (2) to the front fascia panel (5).
4. Install the side marker lamp screw (1) to the sidemarker lamp (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 2 N.m (18 lb in).
