Fluid - A/T: Testing and Inspection

Transmission Fluid Checking Procedure

Steps 1 - 7:

Steps 8 - 9:

Step 10:

Step 11:

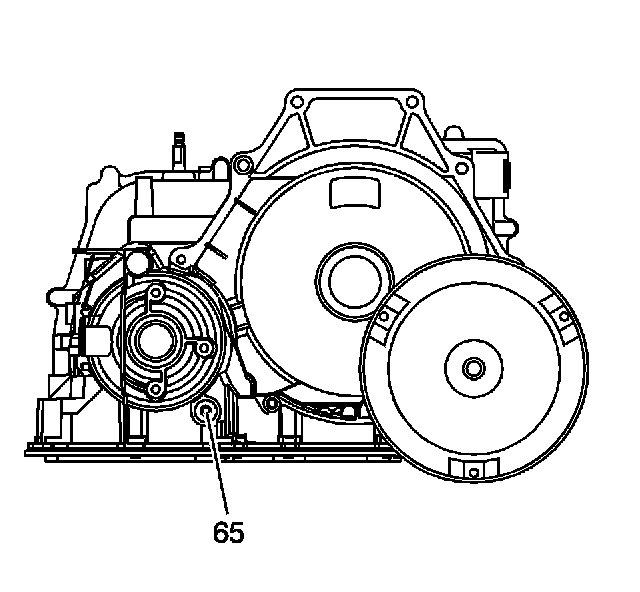

The oil level control plug (65) is located on the torque converter side of the transmission.
