Power Steering Return Hose Replacement

Power Steering Return Hose Replacement

Removal Procedure
1. Remove the upper air cleaner assembly.

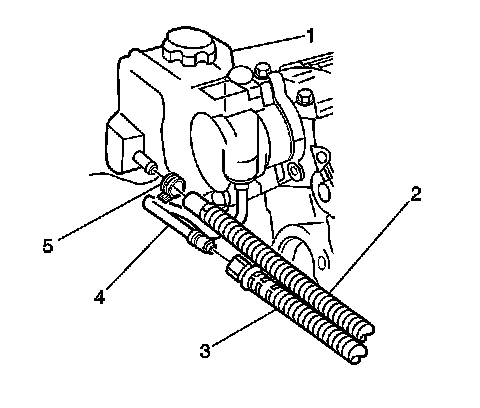

2. Remove the clamp (5) and the power steering return hose (2) from the power steering pump (1).
3. Raise the vehicle on a hoist.





4. Remove the front exhaust pipe with the catalytic converter, automatic transmission only.
5. Remove the power steering return hose (2) from the vehicle.

Installation Procedure






1. Notice:
Refer to Installing Hoses Without Twists or Bends Notice in Service Precautions.

Install the power steering return hose (2) to the vehicle.

2. Notice:
Refer to Fastener Notice in Service Precautions.

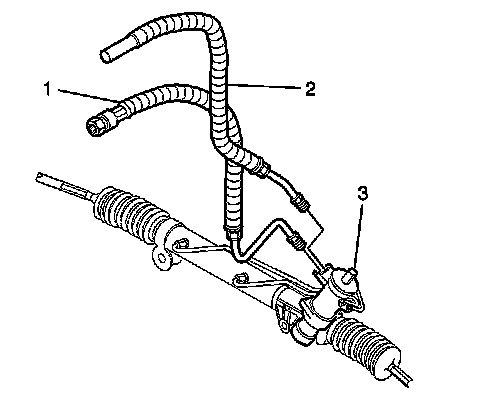

Install the power steering return hose (2) to the power steering gear (3).
^ Tighten the fitting to 27 Nm (20 ft. lbs.).
3. Install the front exhaust pipe with the catalytic converter, if removed.
4. Lower the vehicle.



5. Install the power steering return hose (2) and the clamp (5) to the power steering pump (1).
6. Install the upper air cleaner assembly.
7. Bleed the power steering system.
