Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Classic L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Fuse Block, Left I/P
Fuse Block, Left I/P

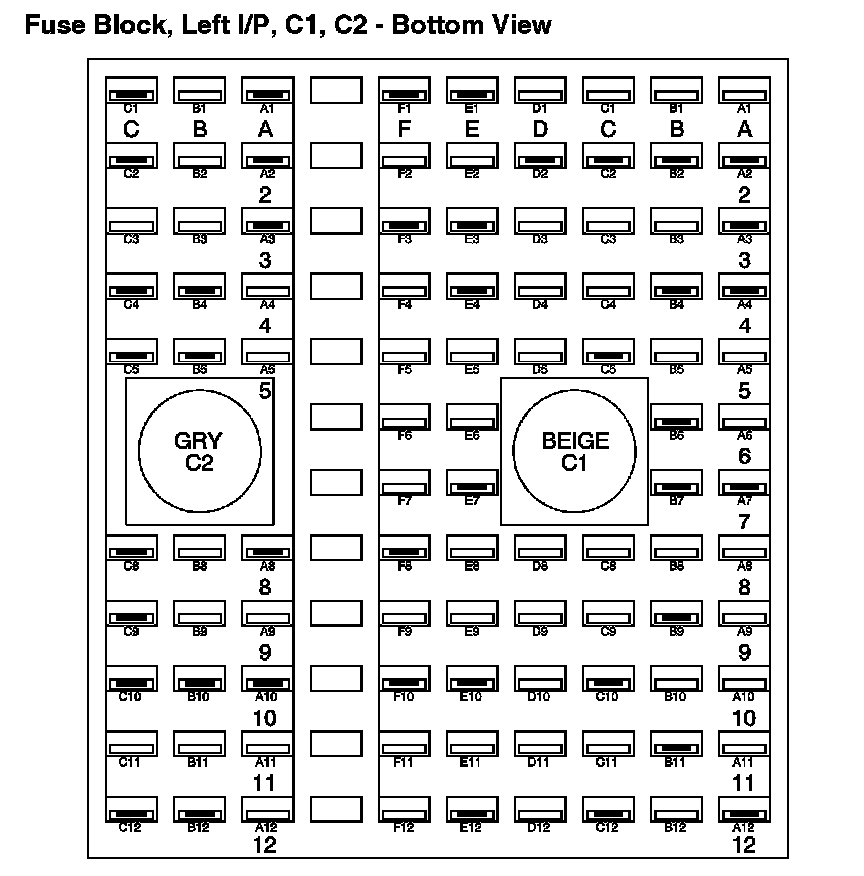

Location View:

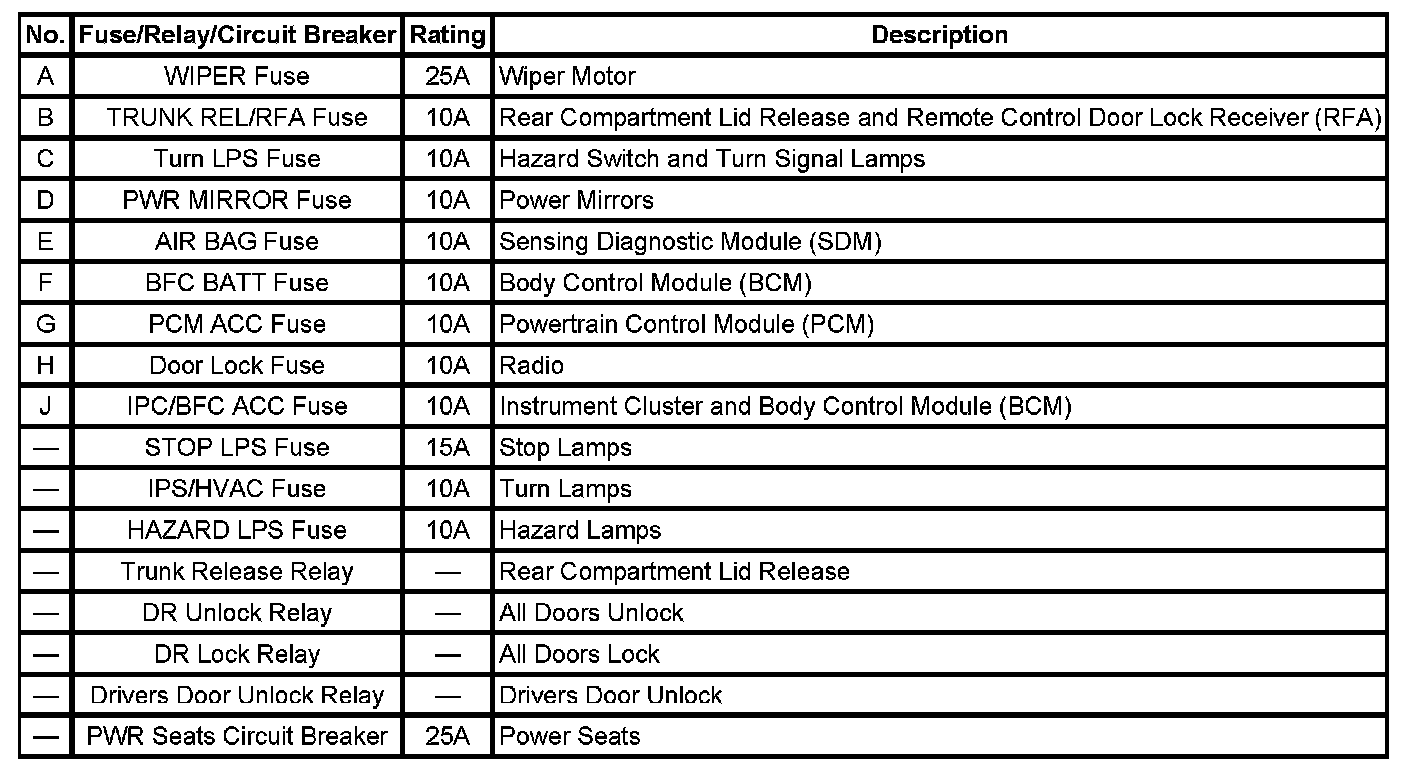

Application Table:

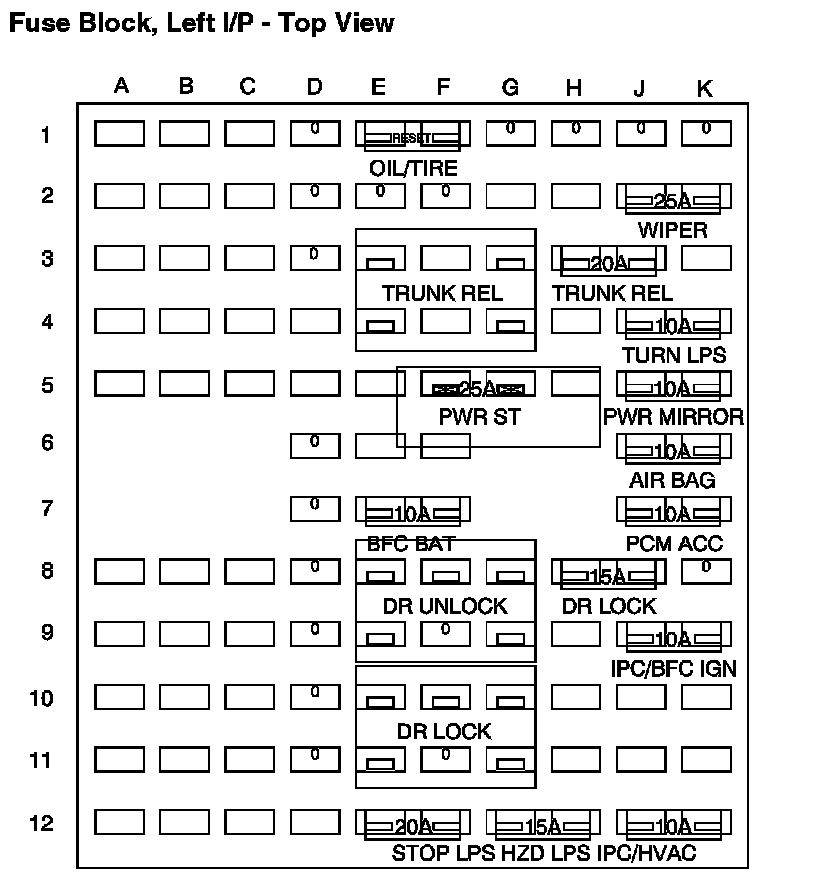

Location View:

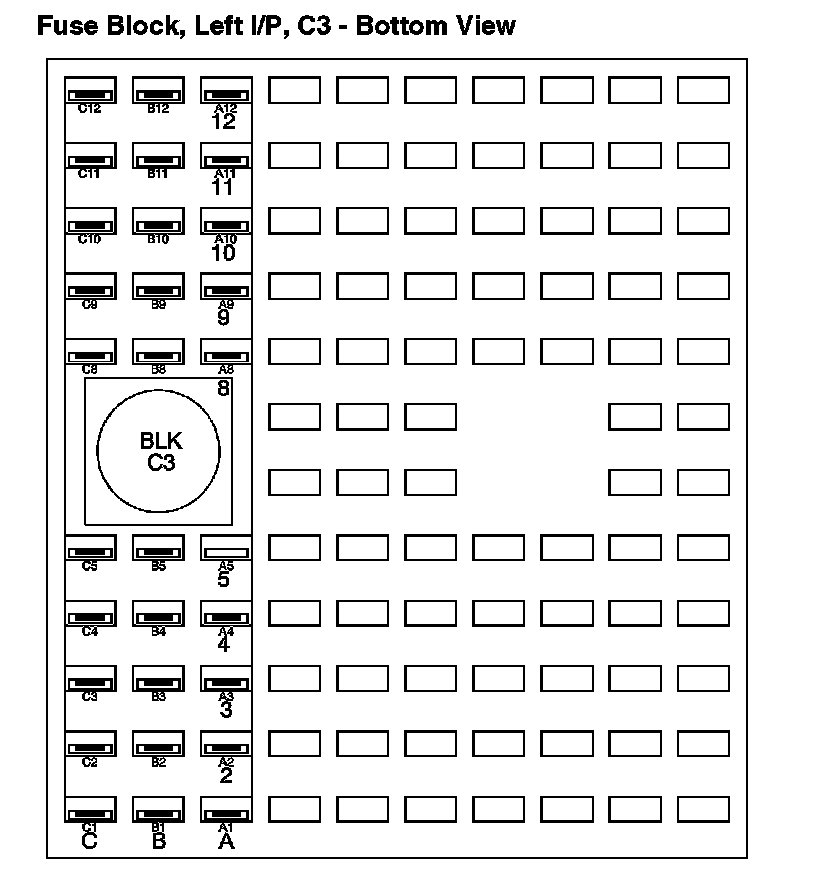

Location View:

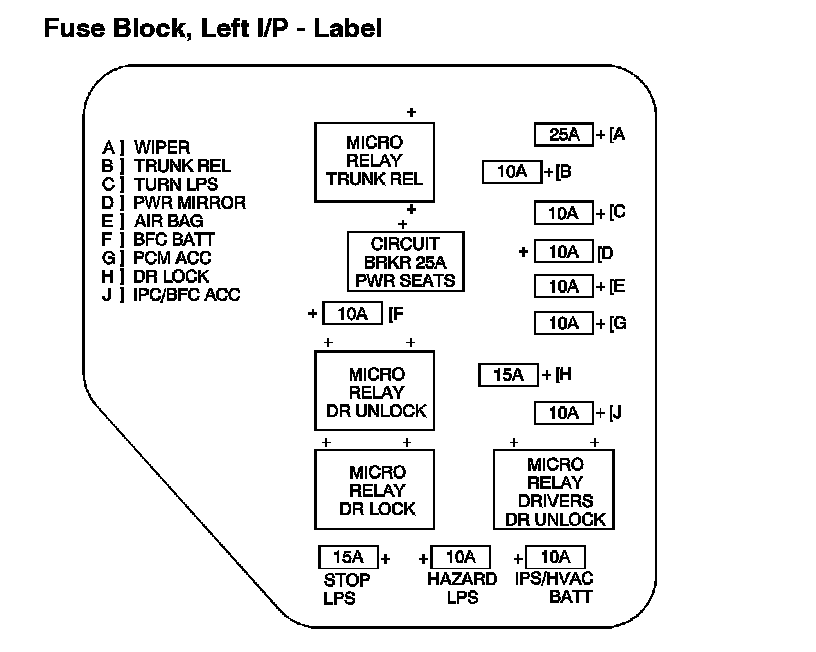

Location View:
