Child Restraint: Service and Repair

BRACKET REPLACEMENT - CHILD SEAT BELT RESTRAINT SYSTEM

REMOVAL PROCEDURE




1. Remove the rear seat cushion.
2. Remove the rear seat back. If equipped with a split folding rear seat back refer to Seat Back Replacement - Rear Split Folding in Seats.

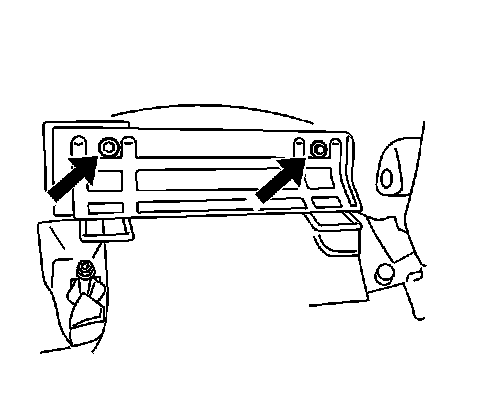

3. Remove the bolts from the child seat latch bracket.
4. Remove the child seat latch bracket from the vehicle.

INSTALLATION PROCEDURE




1. Position the child seat latch bracket in the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolts to the child seat latch bracket.

Tighten the bolts to 25 N.m (18 lb ft).

3. Install the rear seat back. If equipped with a split folding rear seat back refer to Seat Back Replacement - Rear Split Folding in Seats.
4. Install the rear seat cushion.
