Front

Transmission Mount Replacement - Front

Removal Procedure
1. Raise and support the vehicle.

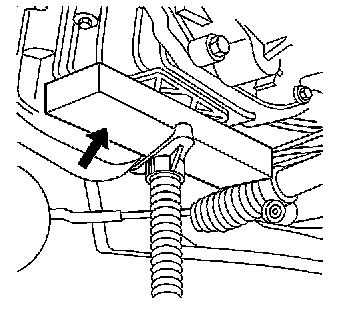

2. Support the engine with a jackstand and a block of wood.

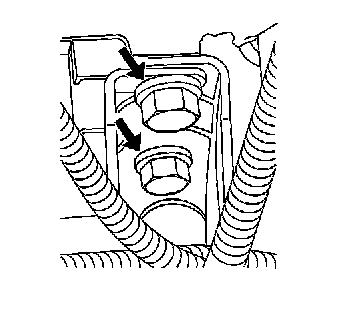

3. Remove the mount through bolt.





4. Remove the lower mount bracket bolts and the lower mount bracket.

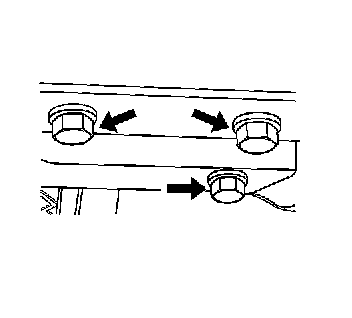

5. Remove the front transmission mount bolts and the front transmission mount.

Installation Procedure






1. Notice:
Position the front transmission mount and install the bolts.

^ Tighten the bolts to 130 Nm (96 ft. lbs.).





2. Position the lower transmission mount bracket and install the bolts.
^ Tighten the bolts to 120 Nm (89 ft. lbs.).

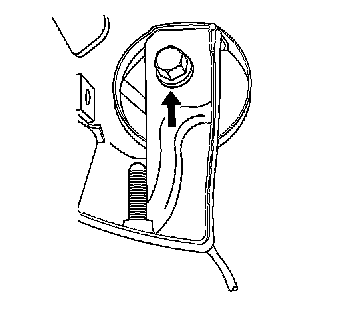

3. Install the transmission mount through bolt.
^ Tighten the through bolt to 75 Nm (55 ft. lbs.).
4. Remove the jackstand and the wood block.
5. Lower the vehicle.
