Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the washer solvent from the washer solvent container.
2. Remove the left front fender liner.

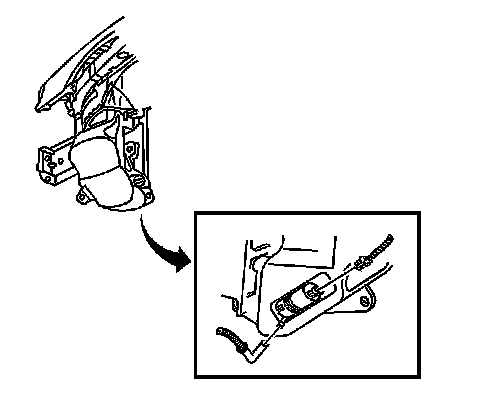

3. Disconnect the washer pump electrical connector.
4. Disconnect the washer hose.
5. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.
6. Using a small flat-bladed tool, remove the seal from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the seal to the washer solvent container pressing in until fully seated.
2. position the washer pump to the washer solvent container pressing in until fully seated.
3. Connect the washer hose.
4. Connect the washer pump electrical connector.
5. Install the left front fender liner.
6. Fill the washer solvent container with washer solvent.
