Wiper Arm: Testing and Inspection

WIPER ARM TIP PRESSURE CHECK

WIPER ARM PRESSURE CHECK

1. Run the wiper arms to the mid-wipe position.
2. Remove the wiper blades from the wiper arms.

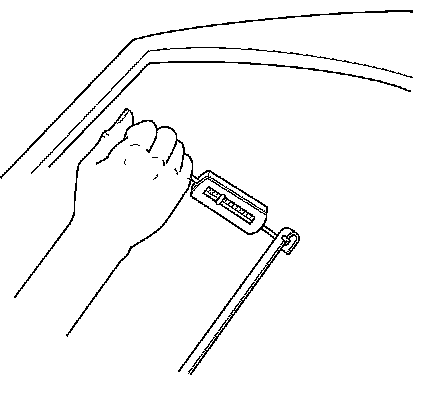

3. Attach a scale to the end of the wiper arm and measure the force required to lift the wiper arm perpendicular to the windshield to normal working height (height with the blade attached).
4. Replace the wiper arm if the measurement is not within the specification.
- Drivers side-8.1-9.5 Newtons (26-31 oz).
- Passenger side-5.8-7.0 Newtons (19-23 oz).
