Wiper Blade: Testing and Inspection
WIPER BLADE ELEMENT CHECK 1.
Remove the
wiper blades from the
wiper arms.
2.

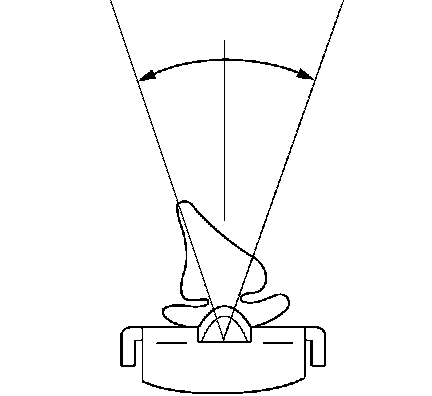

Look down the length of the blade element.
3.
Replace the
wiper blade element if the rubber element which contacts the glass is not on the centerline of the blade
+/-15 degrees.
4.
Install the
wiper blades on the
wiper arms.
