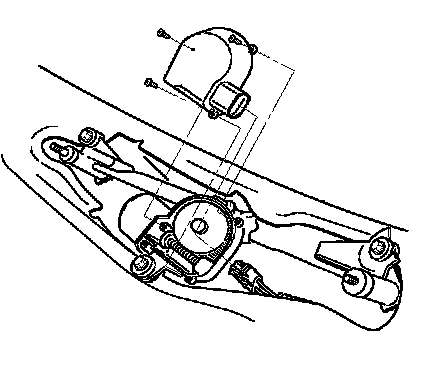

Wiper Motor Cover Replacement

WIPER MOTOR COVER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the air inlet grille panel.




2. Disconnect the wiper motor electrical connector.
3. Remove the wiper motor cover screws.
4. Remove the wiper motor cover from the wiper motor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Position the wiper motor cover to the wiper motor.
2. Install the wiper motor cover screws.

Tighten the 3 screws to 2 N.m (18 lb in).

3. Connect the wiper motor electrical connector.
4. Install the air inlet grille panel.
