Transmission

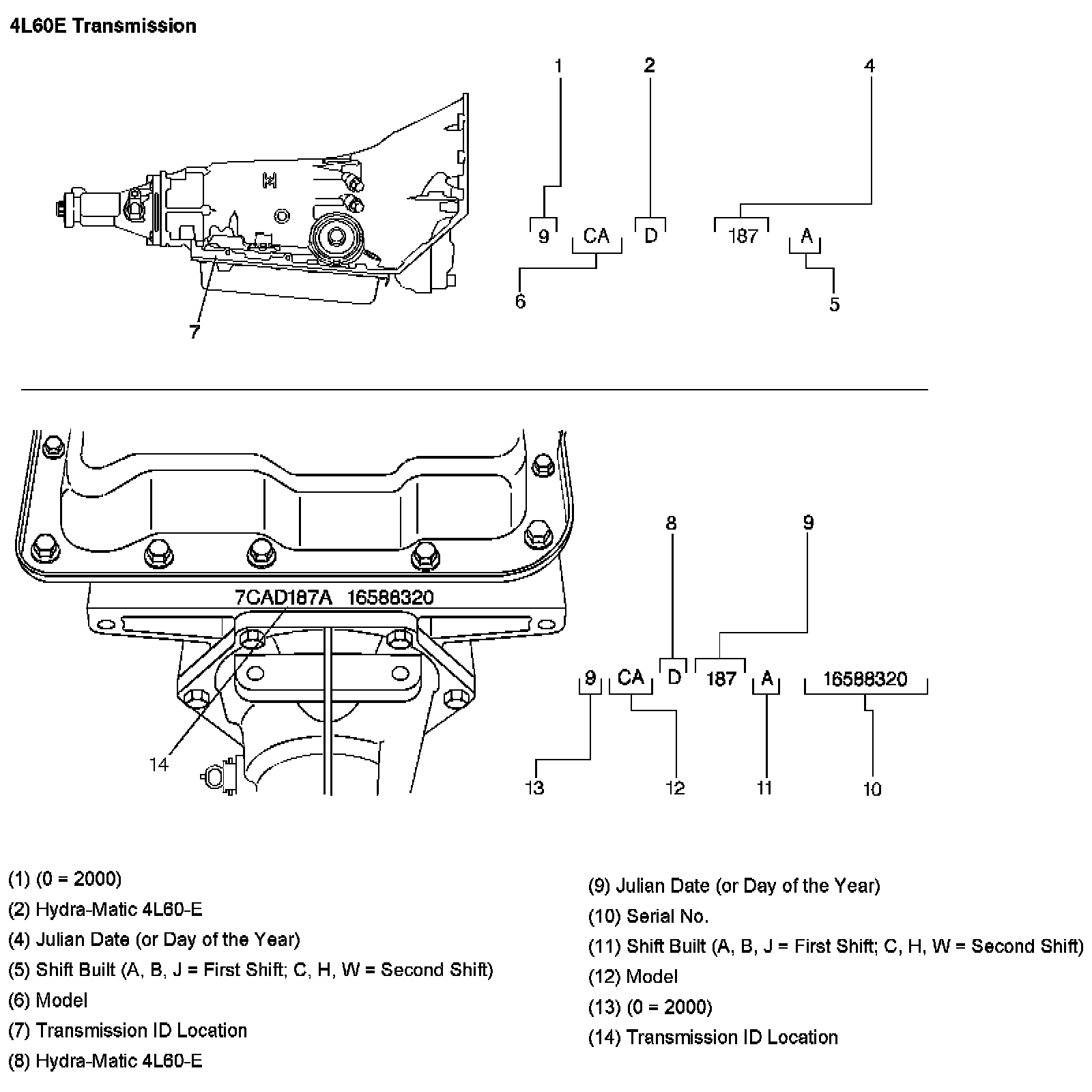

TRANSMISSION ID AND VIN DERIVATIVE LOCATION4L60E Transmission:

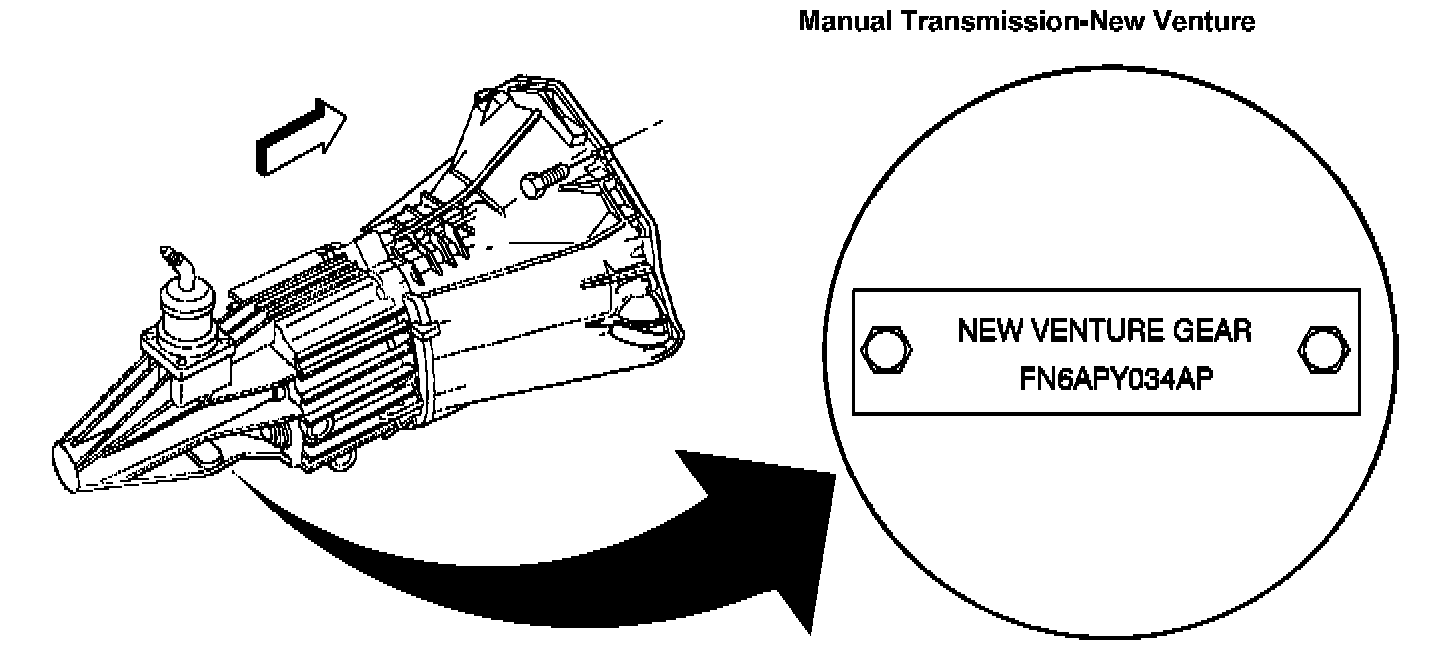

Manual Transmission - New Venture:
The transmission model identification is located on a label or tag on the transmission
case. If this label is missing or unreadable, use the service parts identification label in order to identify the vehicles transmission.
