Home >> Chevrolet >> 2004 >> Colorado 4WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams

Electrical Diagrams

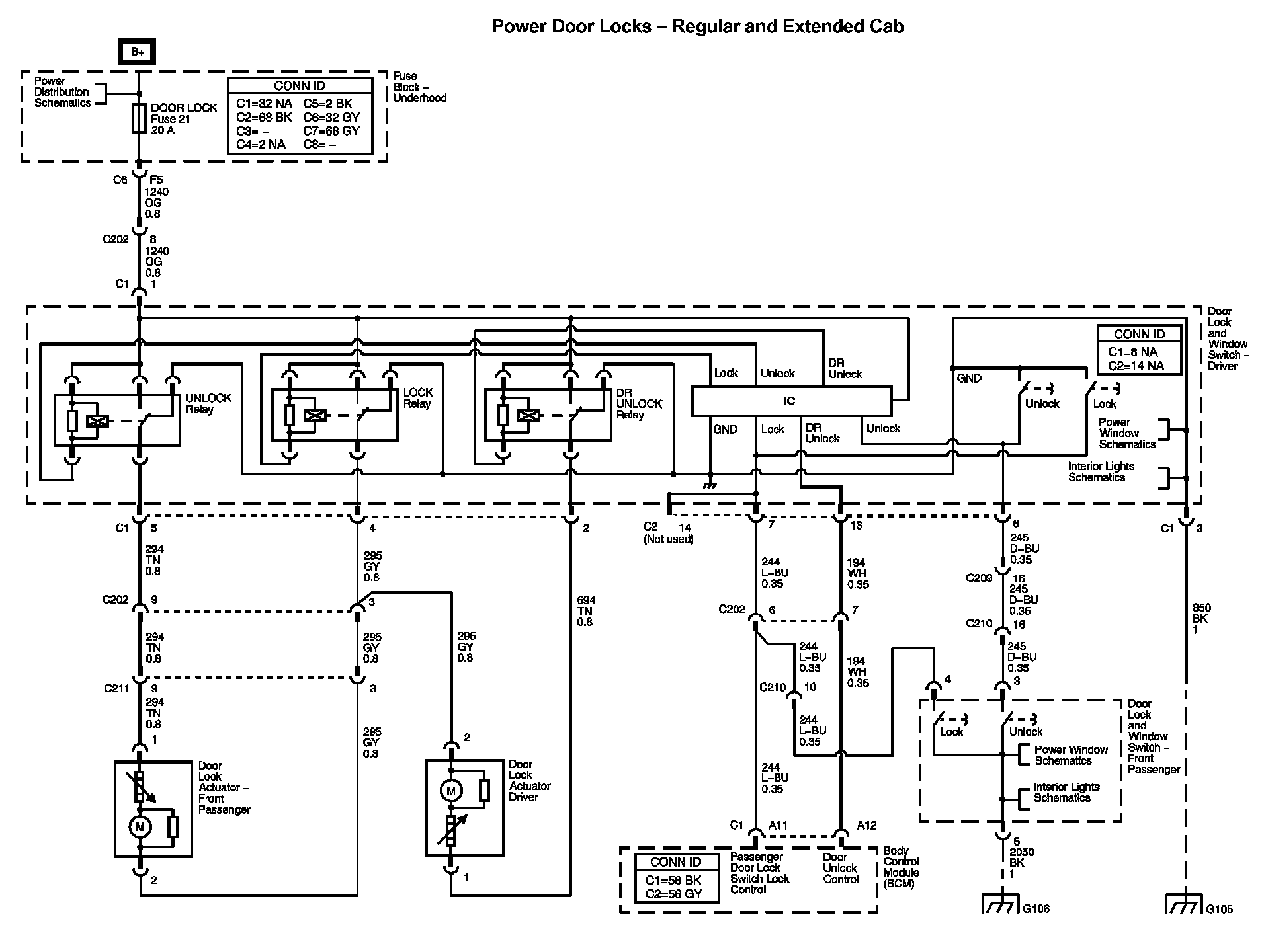

Door Lock/Indicator Diagram 1:




Door Lock/Indicator Diagram 2:




Door Lock/Indicator Diagram 3:
