Seat Temperature Element

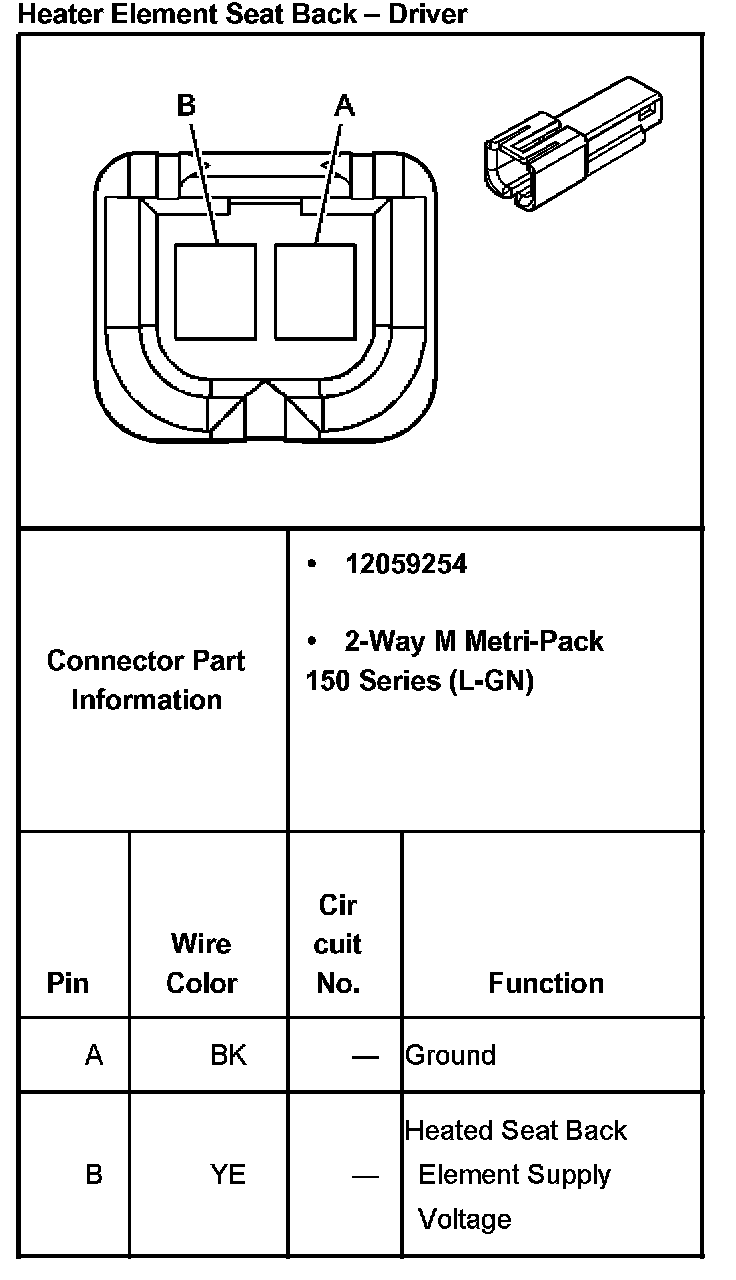

Heater Element Seat Back - Driver:



Heater Element Seat Back - Passenger:
