Inflatable Restraint Roof Rail Module Replacement (Crew Cab)

INFLATABLE RESTRAINT ROOF RAIL MODULE REPLACEMENT - FRONT (CREW CAB)

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 2 and SIR Disabling and Enabling Zone 6.
2. Remove the head restraints from the front seats.
3. Lower the headliner.




4. Disconnect the roof rail air bag electrical connector (1).
5. Remove the forward tether bolt (3).
6. Remove the clips (3) from the pillar.




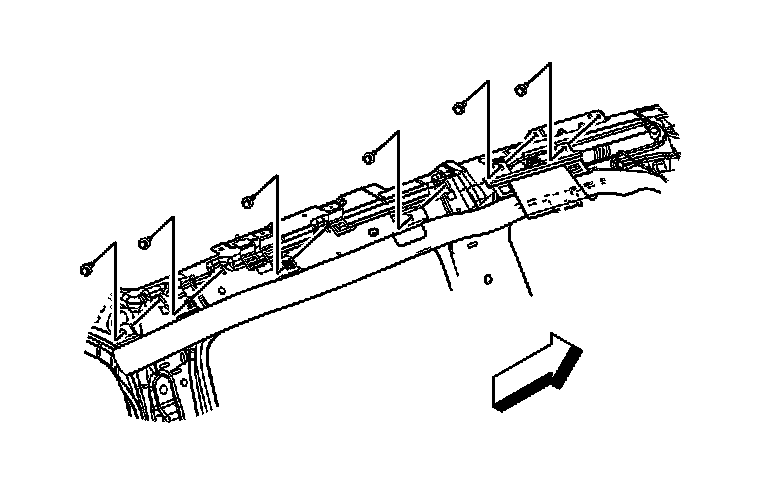

7. Remove the 3 bolts retaining the rear curtain to the roof.
8. Remove the bolt retaining the bracket to the roof.




9. Remove the forward curtain clip (2).

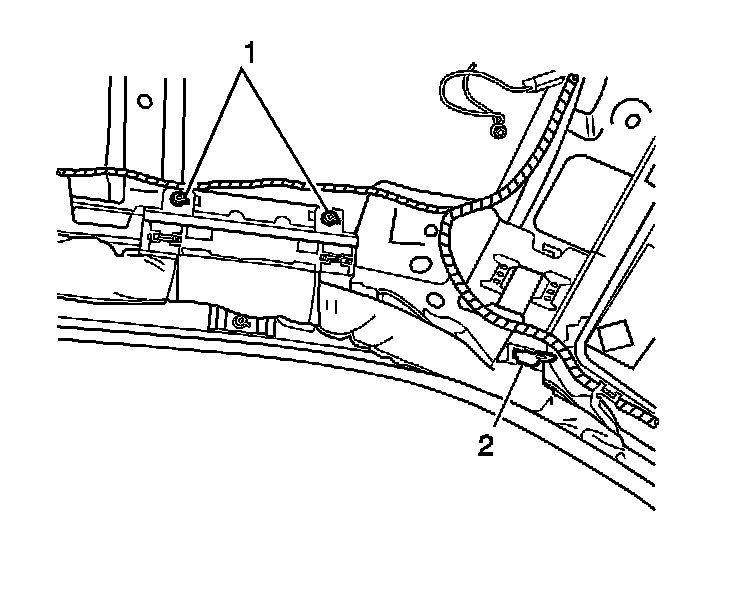

10. Remove the 3 bolts (1, 3) retaining the air bag module to the roof.
11. Remove the roof rail air bag from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the 3 bolts (1, 3) retaining the roof rail air bag module to the roof.

Tighten
Tighten the roof rail air bag module bolts to 9 N.m (79 lb in).

2. Install the forward curtain clip (2).
3. Install the bolt retaining the bracket to the roof.




4. Install the 3 bolts retaining the rear curtain to the roof.

Tighten
Tighten the roof rail air bag curtain bolts to 9 N.m (79 lb in).




5. Install the clips (3) to the pillar.
6. Install the roof rail air bag forward tether bolt (3).

Tighten
Tighten the roof rail air bag forward tether bolt to 9 N.m (79 lb in).

7. Connect the roof rail air bag electrical connector (1).
8. Install the headliner.
9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 2 and SIR Disabling and Enabling Zone 6.
10. Install the head restraints from the front seats.
