Wipers Inoperative - All Modes

Steps 1 - 4:

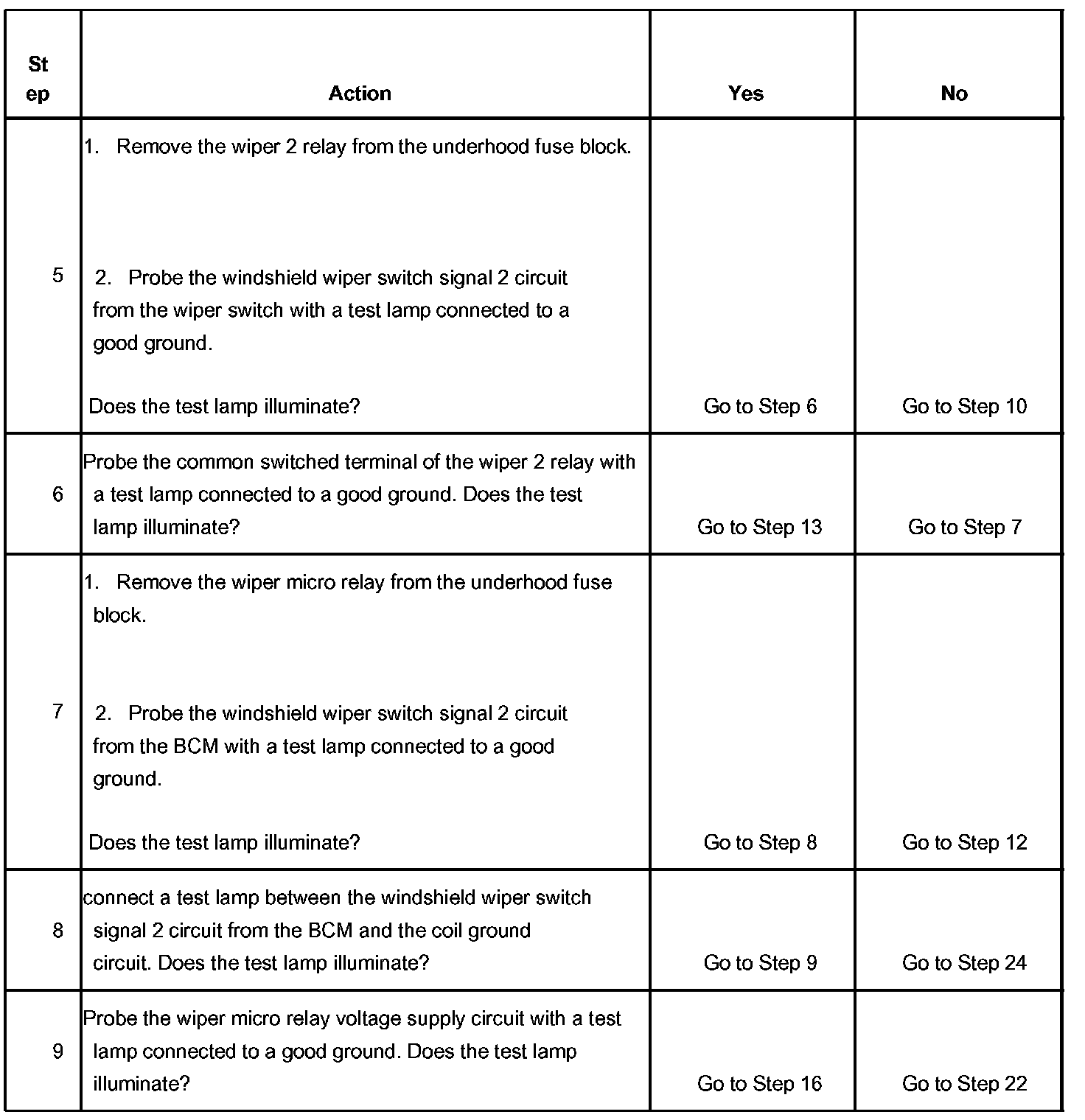

Steps 5 - 9:



Steps 10 - 15:



Steps 16 - 22:

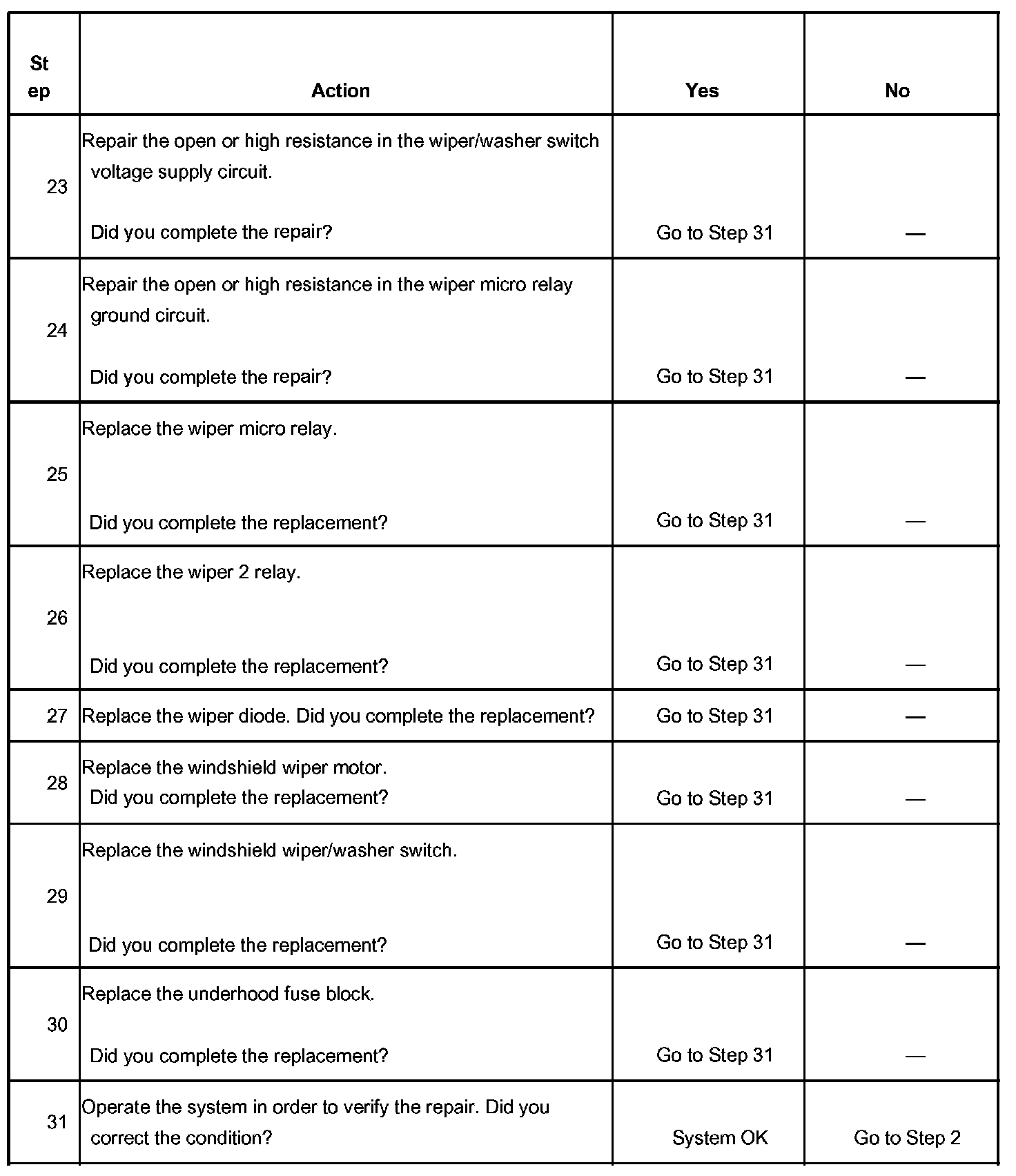

Steps 23 - 31:
