Body and Frame: Adjustments
Body Panel AdjustmentThe rear tip of the front
fender is adjusted outward by installing a retainer (shim) GM P/N 10412533 to the door flange.
1.
Open the door.
2.

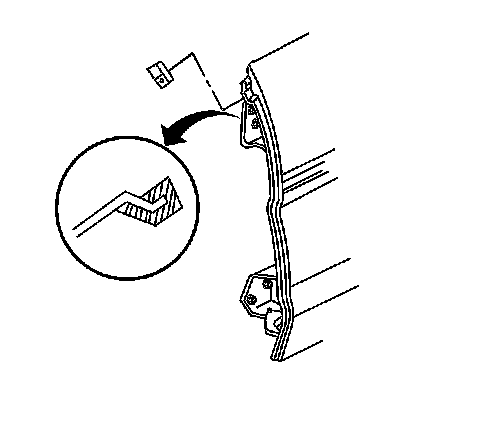

Install a retainer (shim), GM P/N 10412533, to the leaning edge of the door flange.
3.
Close the door and check the alignment.
