Accelerator Pedal Position Sensor: Locations

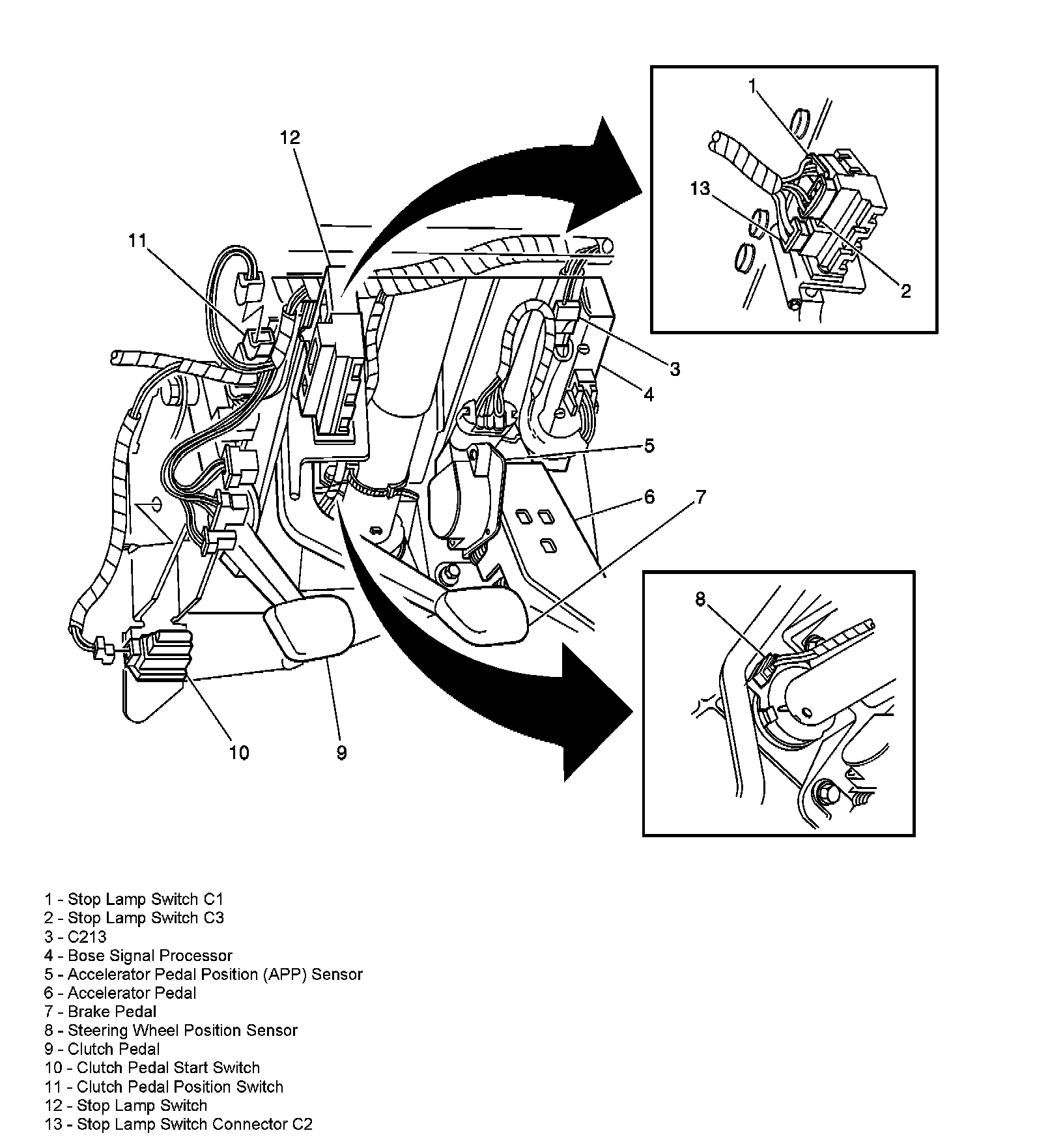

Manual Transmission Component Views





Under Side of the Dash - Left
