Heater Core Replacement - Auxiliary

HEATER CORE REPLACEMENT - AUXILIARY

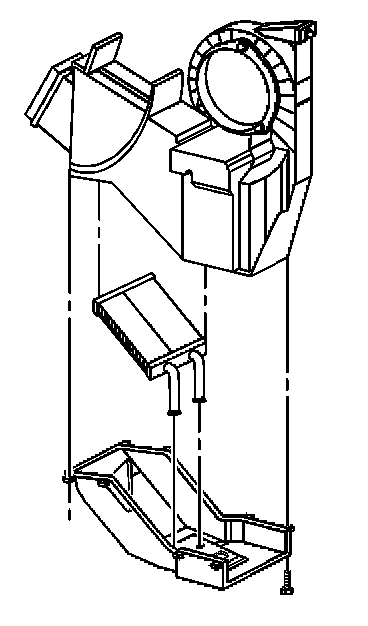

REMOVAL PROCEDURE
1. Remove the auxiliary HVAC module. Service and Repair




2. Remove the screws from the bottom of the auxiliary HVAC module.
3. Remove the heater core from the module.

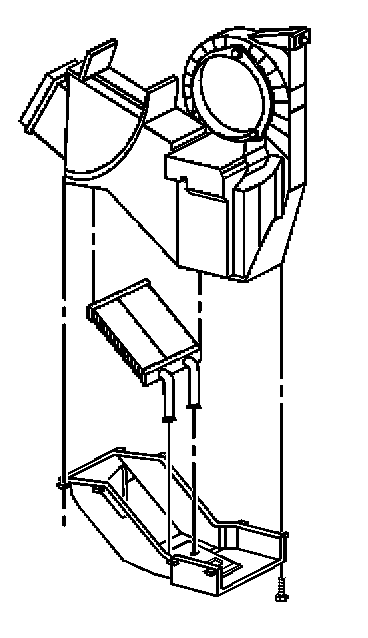

INSTALLATION PROCEDURE




1. Install the heater core to the module.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the bottom of the auxiliary HVAC module.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Install the auxiliary HVAC module.
