Connector Locations
>>
Master Connector List
Master Connector List

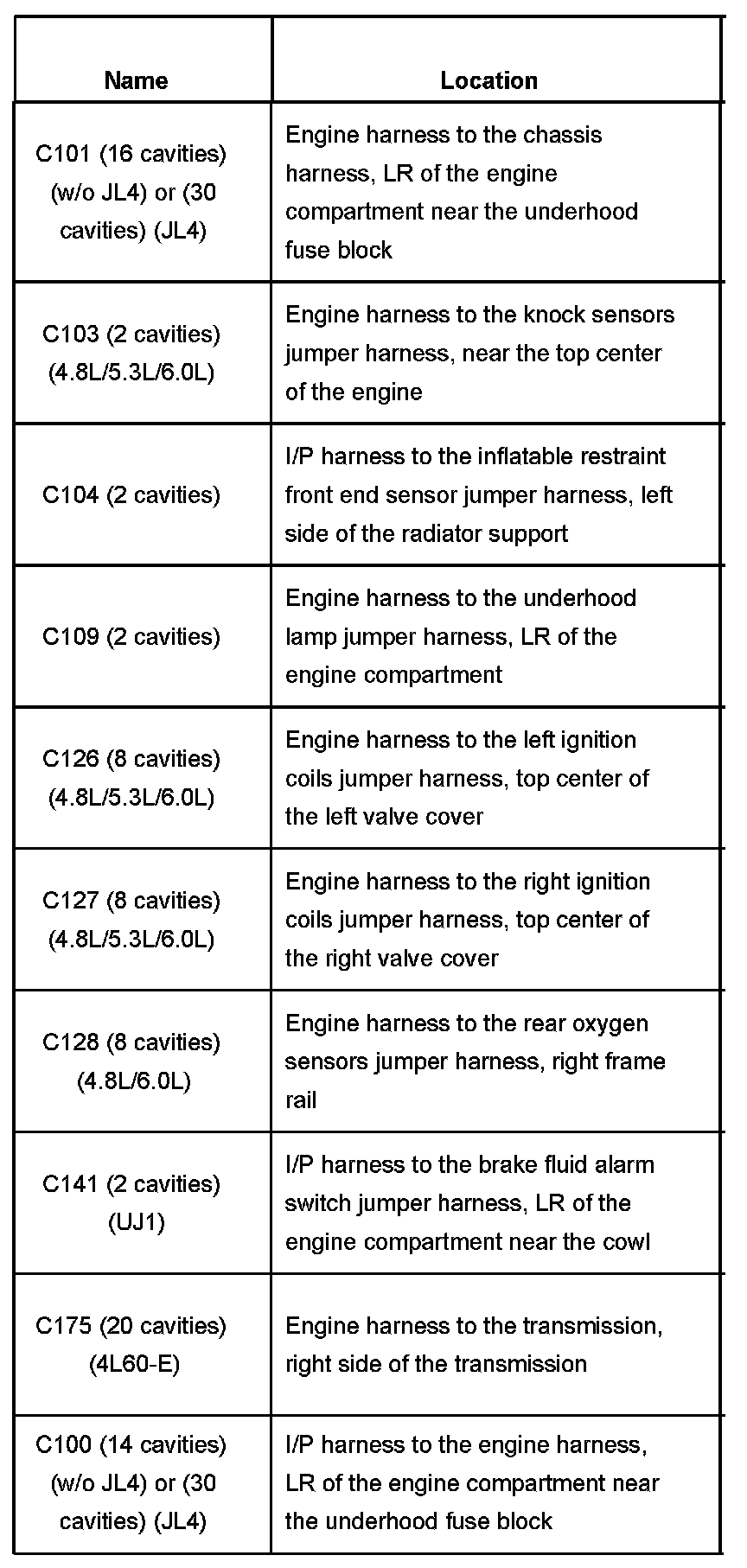

C100 - C175:

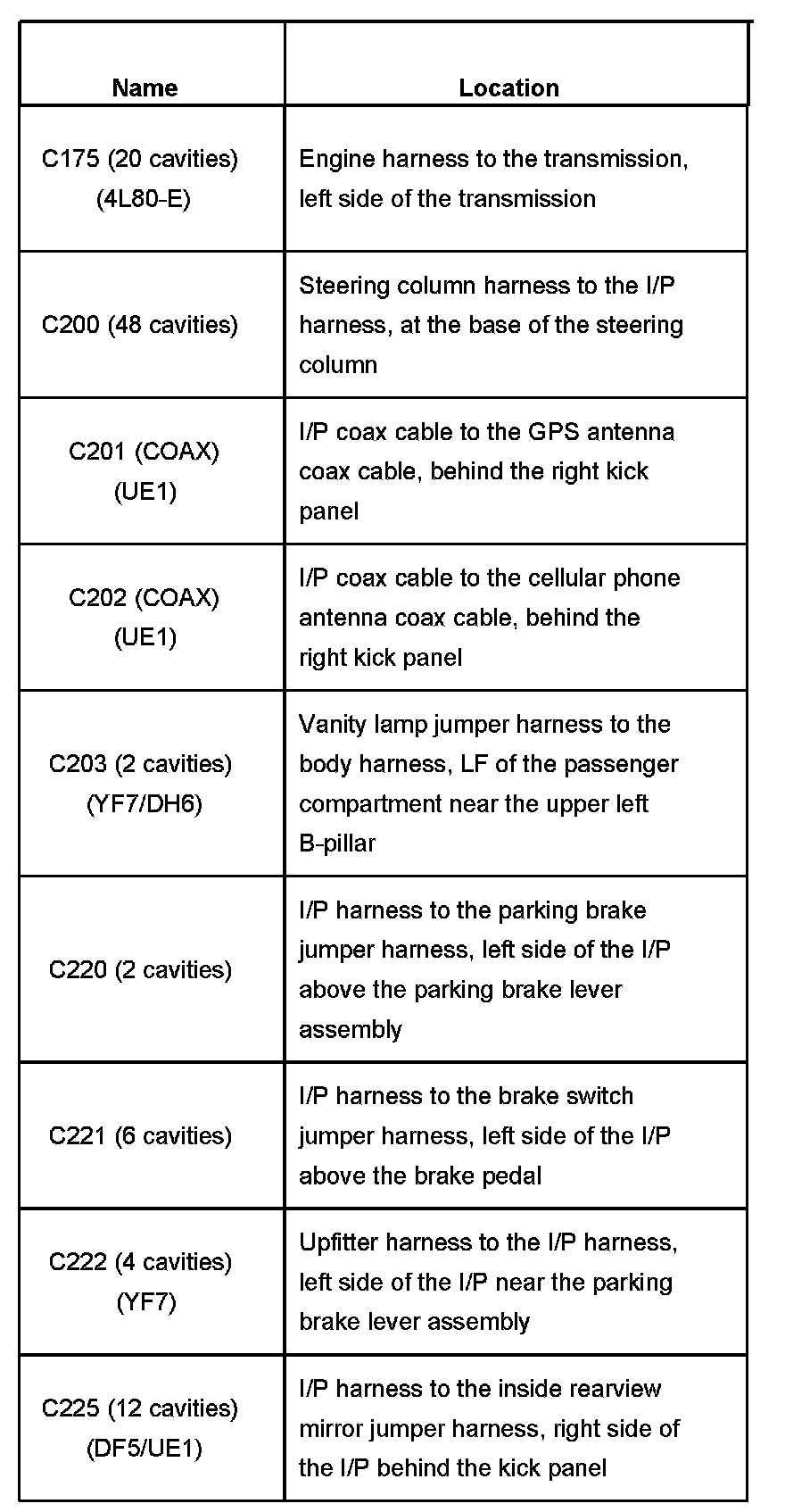

C175 - C225:

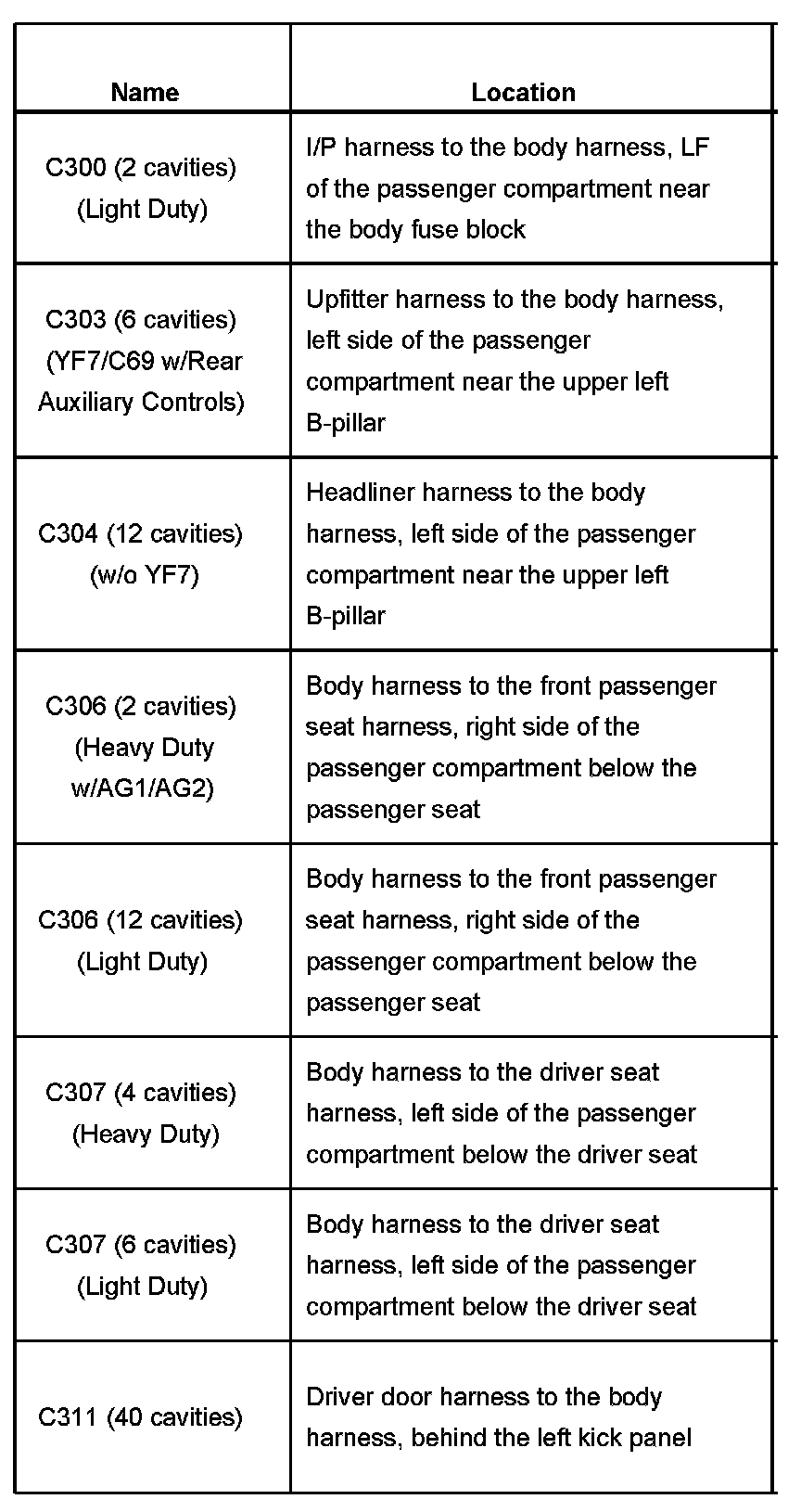

C300 - C311:

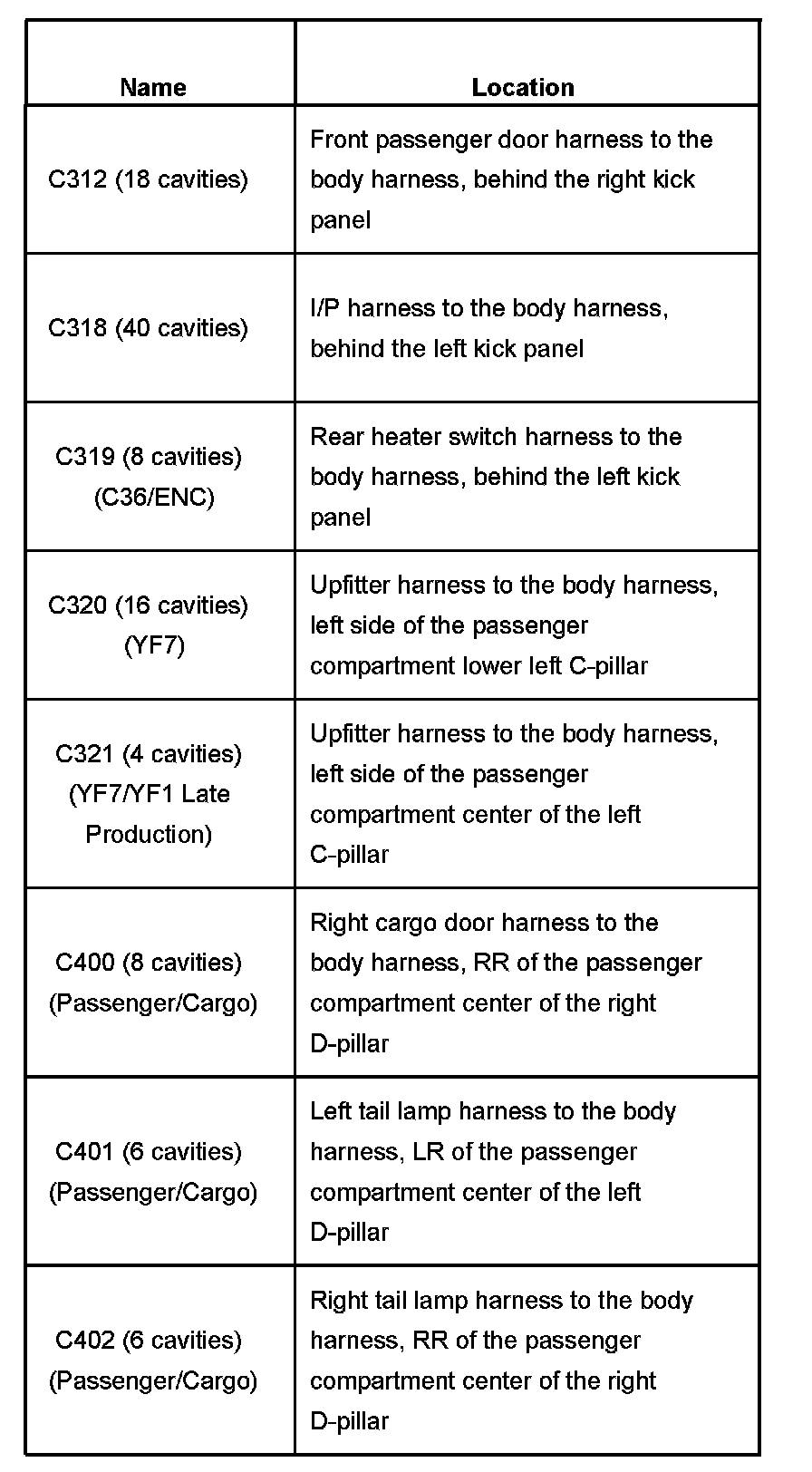

C312 - C402:

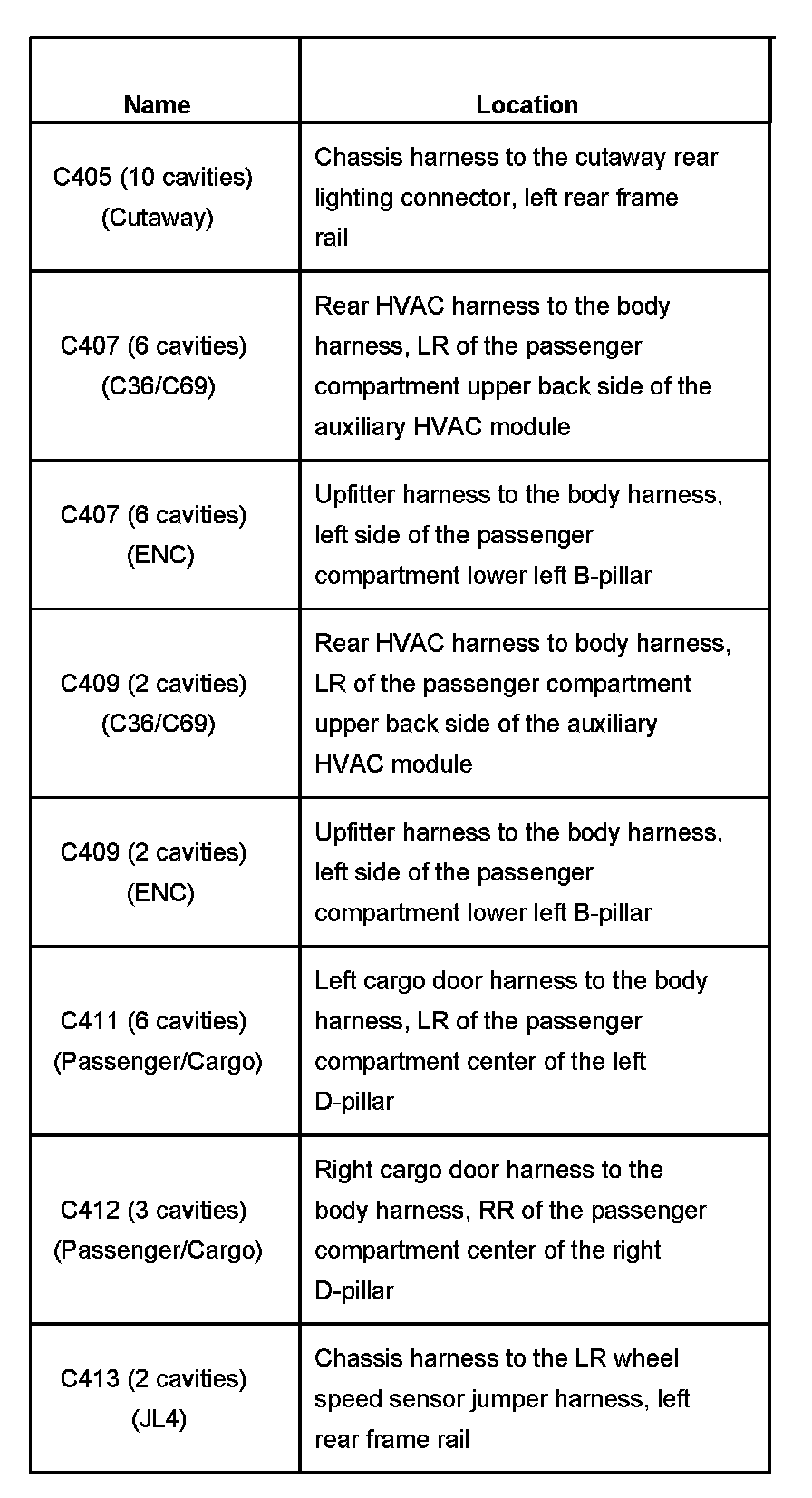

C405 - C413:
C414 - C420:
