Antenna Control Module: Service and Repair

ANTENNA MODULE REPLACEMENT

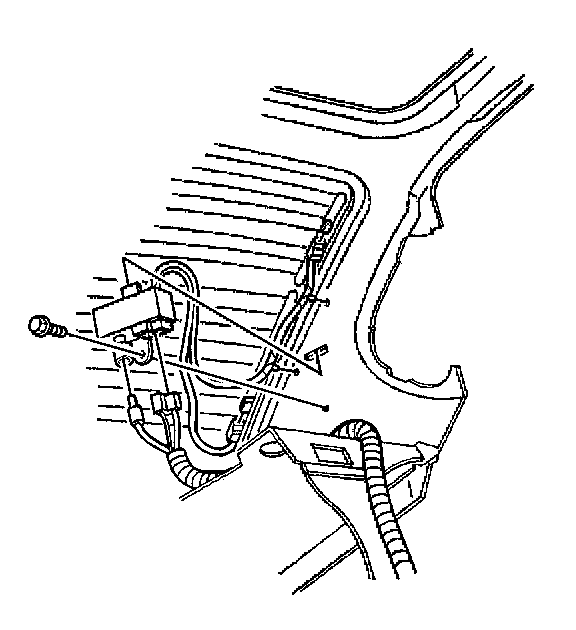

REMOVAL PROCEDURE




1. Remove the upper trim panel from the left rear quarter.
2. Disconnect the antenna amplifier electrical connector and the antenna coaxial cable. The antenna coaxial cable uses a sliding snap-lock. Pull the lock in order to remove the antenna coaxial cable.
3. Detach the black antenna leads from the glass. The upper lead is held to the body metal with a wiring clip. Carefully pry the clip out of the metal.
4. Remove the antenna amplifier bolt.
5. Remove the antenna amplifier.

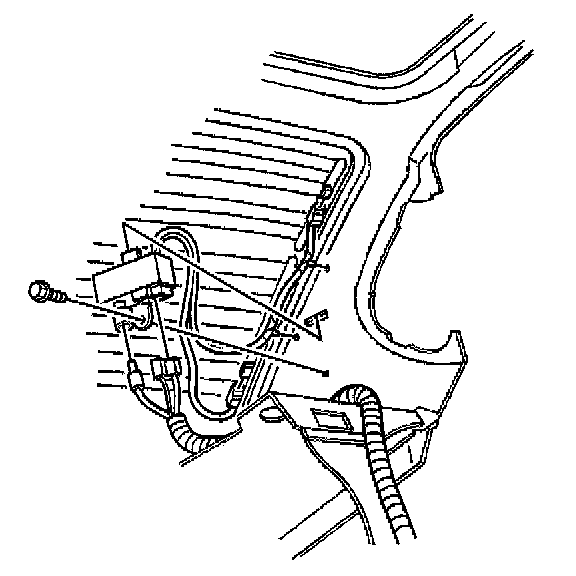

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Position the antenna amplifier to the inner upper panel of the left rear window. Install the antenna amplifier bolt.

Tighten
Tighten the bolt to 3 N.m (27 lb in).

IMPORTANT: The antenna coaxial cable uses a sliding snap-lock. Holding the sliding lock feature will prevent installation.

2. Connect the antenna amplifier electrical connectors:
2.1. Position the antenna coaxial cable behind the sliding lock feature.
2.2. Install the antenna coaxial cable to the sliding lock feature.

IMPORTANT: If the wiring clip is faulty, replace the wiring clip prior to installation.

3. Install the antenna leads to the rear window terminals. Push the wiring clip on the upper lead into the hex hole in the metal.
4. Install the upper trim panel at the left rear quarter.
