Trunk / Liftgate Lock Cylinder: Service and Repair

Lock Cylinder Replacement - Rear Compartment Lid (Impala)

Removal Procedure




1. Remove the rear compartment lid applique.

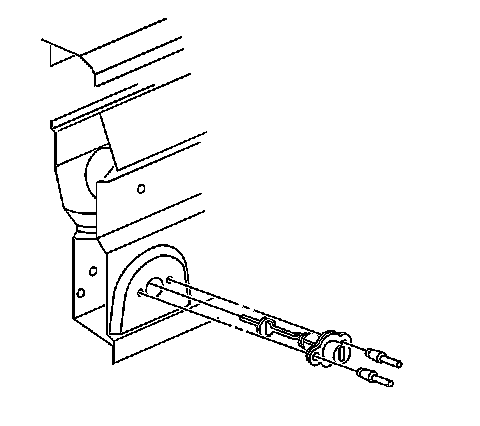

2. Drill out the 2 rivets from the rear compartment lock cylinder.
3. Remove the rear compartment lock cylinder and gasket from the rear compartment lid.

Installation Procedure




1. Align the lock cylinder shaft to the rear compartment lid latch.
2. Align the rear compartment lock cylinder and gasket to the holes in the rear compartment lid, and press in until fully seated.
3. Install the rear compartment lock cylinder and gasket to the rear compartment lid using 2 rivets.
4. Install the rear compartment lid applique.
