Procedures

MOTOR REPLACEMENT - POWER MIRROR

REMOVAL PROCEDURE
1. Remove the door trim panel.

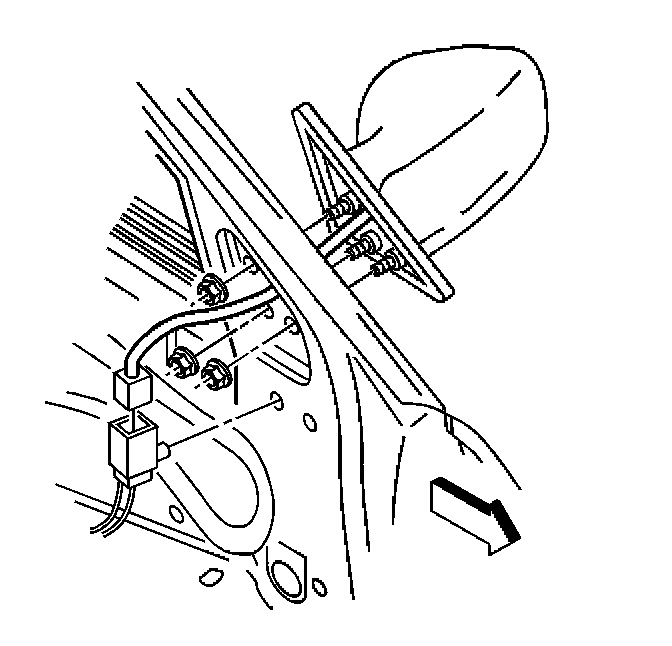

2. Disconnect the electrical connector to the mirror wire harness.

CAUTION: Refer to Eye Protection Caution in Service Precautions.

3. Remove the mirror face.

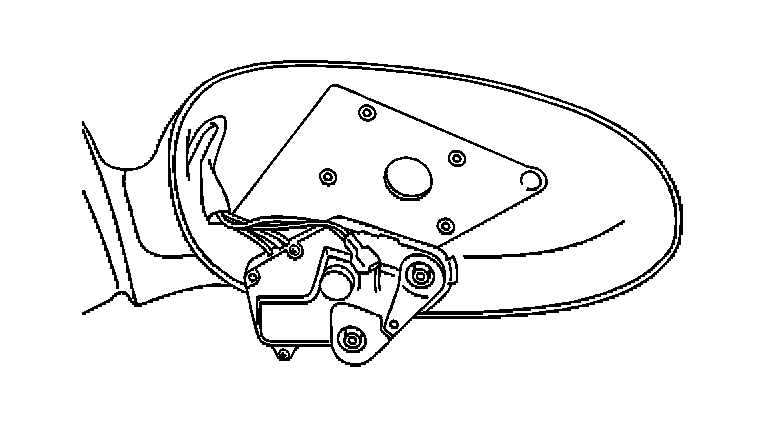

4. Remove the screws from the mirror motor.
5. Pull the motor electrical harness through the mirror housing.
6. Remove the motor from the mirror housing.

INSTALLATION PROCEDURE




1. Position the motor to the mirror housing.
2. Pull the motor electrical harness through to the inside door panel.

NOTE: Refer to Fastener Notice in Service Precautions.

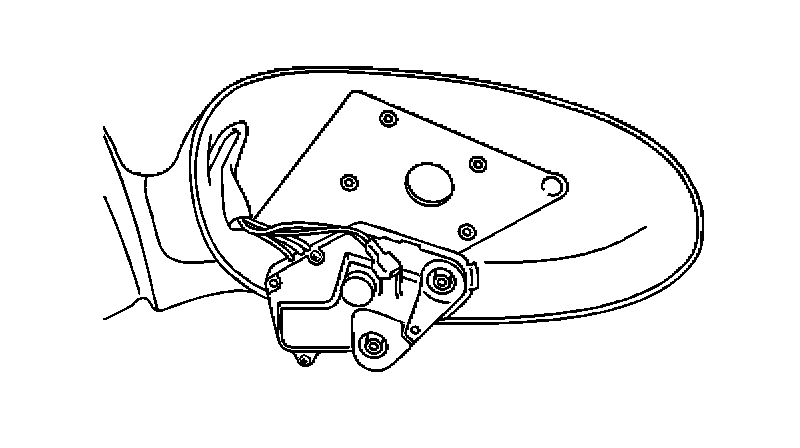

3. Install the screws to the mirror motor.

Tighten
Tighten the mirror motor screws to 10 N.m (89 lb in).

4. Install the mirror face to the mirror housing.

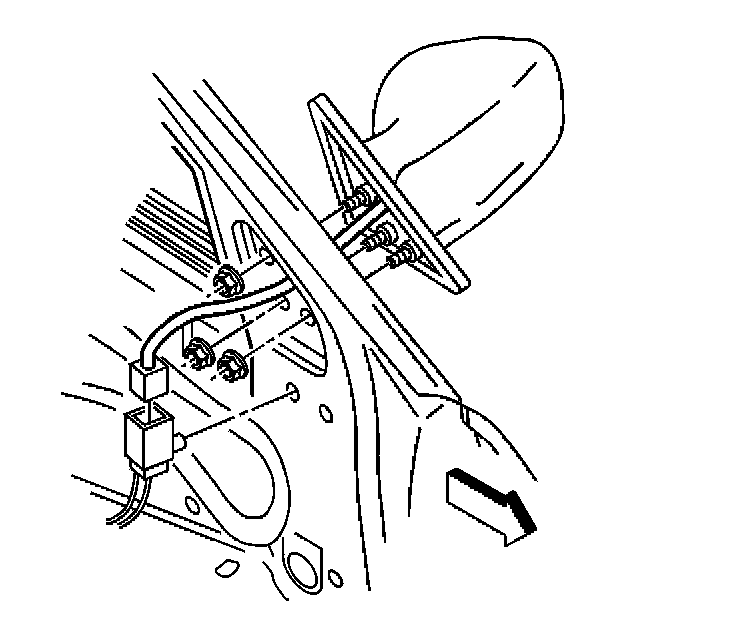

5. Connect the electrical connector to the mirror wire harness.
6. Check the operation of the mirror.
7. Install the door trim panel.
