Lumbar Switch Replacement

LUMBAR SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the outer seat cushion trim panel.

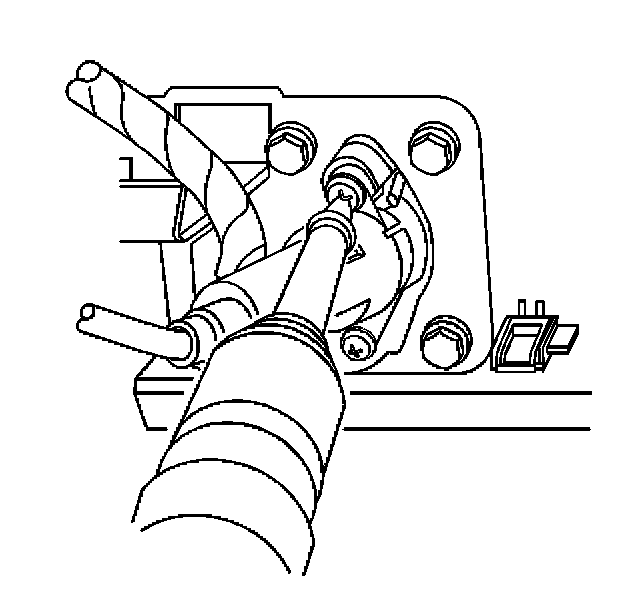

2. Remove the screws from the lumbar control switch.
3. Remove the lumbar control switch from the outer seat cushion trim panel.

INSTALLATION PROCEDURE




1. Position the lumbar control switch to the outer seat cushion trim panel.

NOTE: Refer to Fastener Notice in Service Precautions.

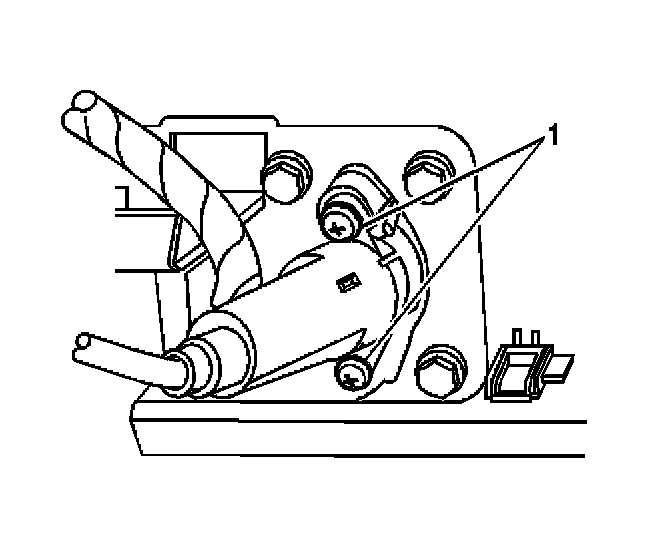

2. Install the screws (1) to the lumbar control switch.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Install the outer seat cushion trim panel.
