Seat Switch Replacement - Power

SEAT SWITCH REPLACEMENT - POWER

REMOVAL PROCEDURE
1. Remove the front seat cushion outer trim panel.

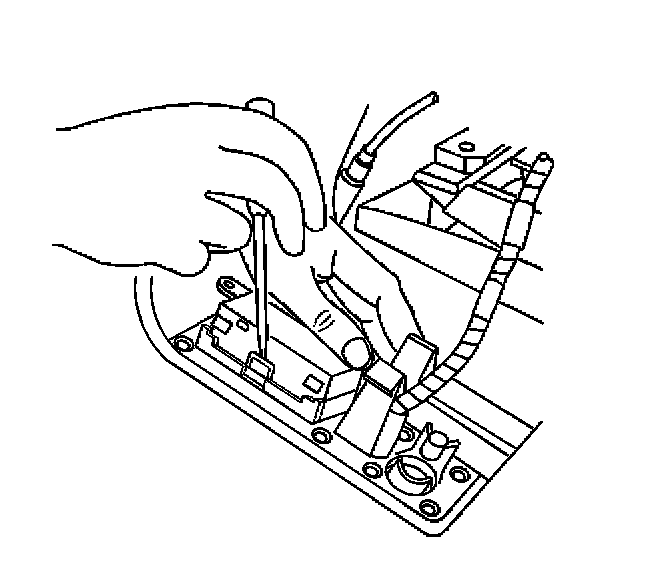

2. Remove the power front seat switch from the front seat outer trim panel, using a small flat bladed tool.

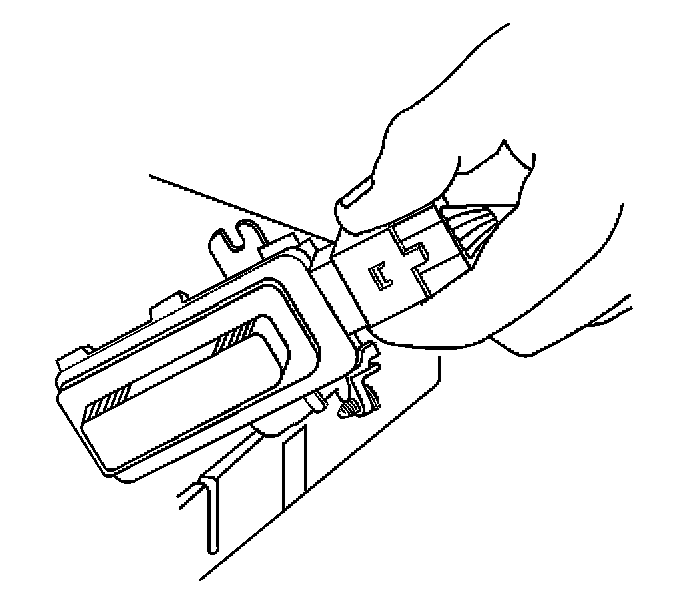

3. Disconnect the electrical connector from the power front seat switch.
4. Remove the power front seat switch from the vehicle.

INSTALLATION PROCEDURE

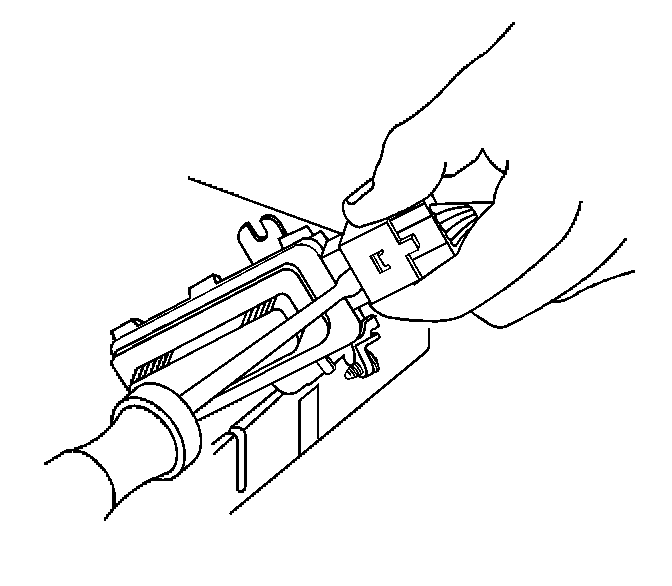

1. Connect the electrical connector to the power front seat switch.

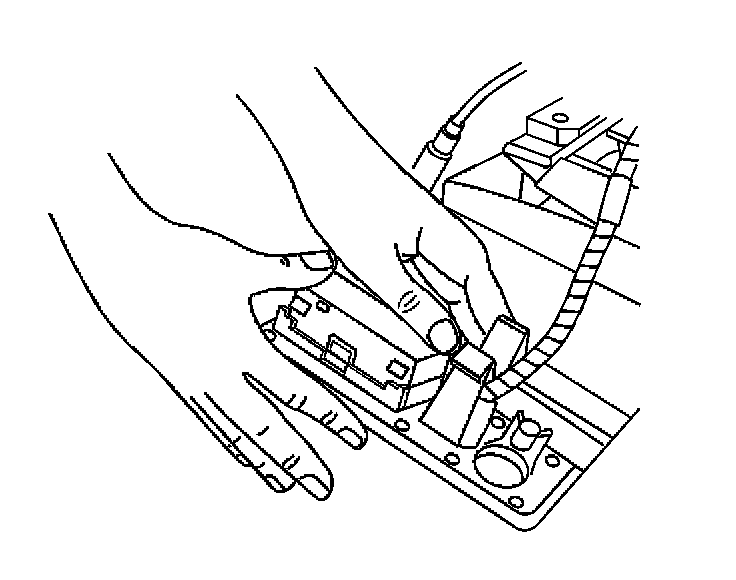

2. Install the power front seat switch to the front seat outer trim panel, pressing into place until fully seated.
3. Install the front seat cushion outer trim panel.
