Procedures

SEAT HEATER ELEMENT REPLACEMENT - FRONT

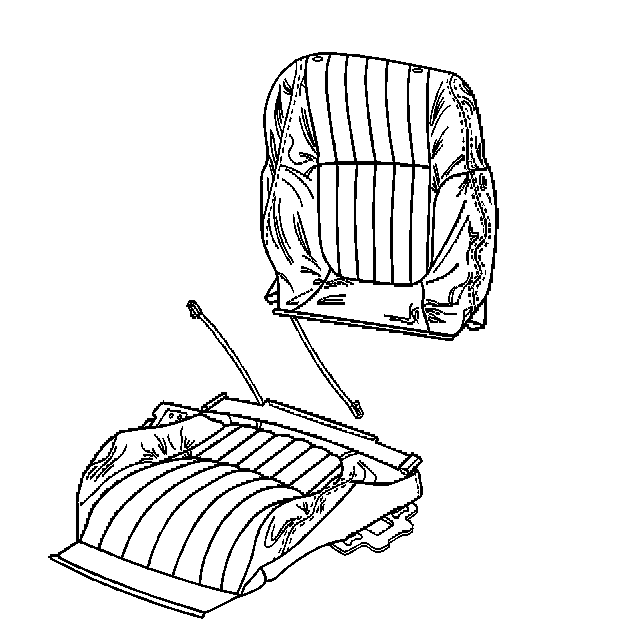

1. The seat heating element is sewn into the front seat back cover and the front seat cushion cover.
2. The seat heating element must be serviced as a unit. Refer to the following procedures for replacement:
- For the front seat back cover, refer to Seat Back Cover Replacement - Front.
- For the front seat cushion cover, refer to Seat Cushion Cover Replacement - Front (Bucket Seat)Seat Cushion Cover Replacement - Front (Split Bench).
