Procedures

HEATED SEAT SWITCH REPLACEMENT - FRONT (IMPALA)

REMOVAL PROCEDURE
1. Remove the front seat cushion outer trim panel.

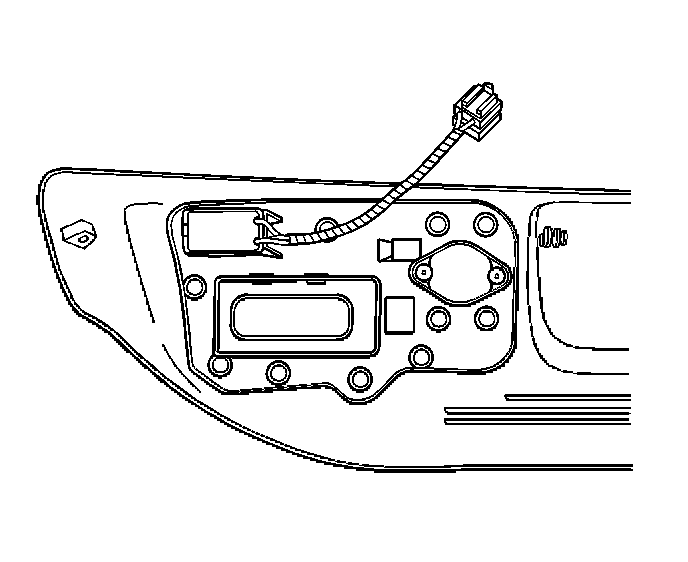

2. Disconnect the electrical connector from the front seat wiring harness.

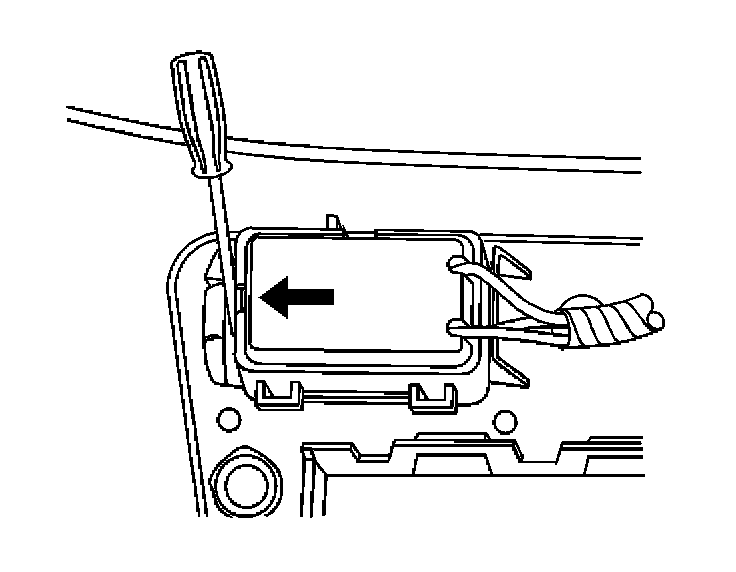

3. Remove the front seat heated seat switch, using a small, flat-bladed tool to release the retainer clips.




4. Remove the front seat heated seat switch from the front seat cushion outer trim panel.

INSTALLATION PROCEDURE

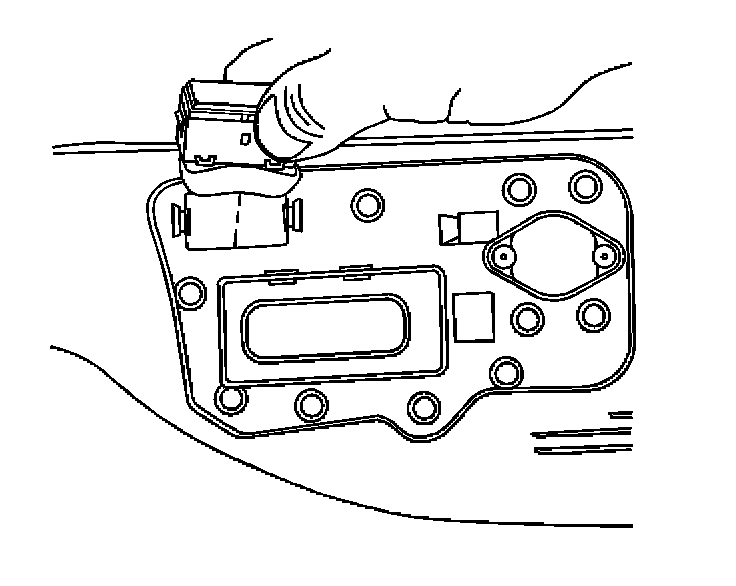

1. Install the front seat heated seat switch to the front seat cushion outer trim panel, pressing into place until fully seated.

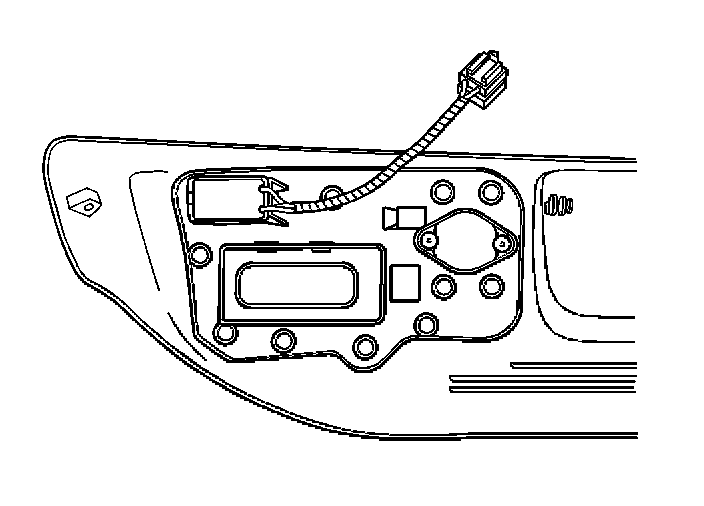

2. Connect the electrical connector to the front seat wiring harness.
3. Install the front seat cushion outer trim panel.
