Splash Shield Replacement - Engine - Left



Splash Shield Replacement - Engine - Left

Tools Required

J 38778Door Trim Pad Clip Remover

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.

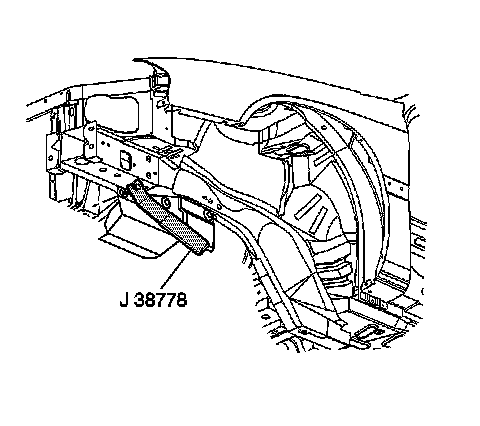

2. Use J 38778 to remove the push-in retainers holding the engine splash shield to the lower flange of the engine compartment side rail.




3. Remove the engine splash shield from the lower flange of the engine compartment side rail.

Installation Procedure

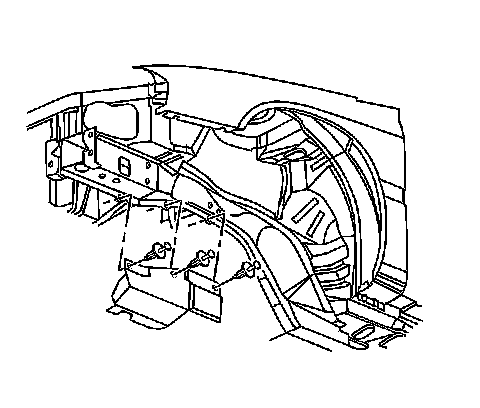

1. Install the engine splash shield to the lower flange of the engine compartment side rail.
2. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
3. Install the push-in retainers to the engine splash shield.
4. Lower the vehicle.
