Trunk / Liftgate Weatherstrip: Service and Repair

Weatherstrip Replacement - Rear Compartment Opening (Impala)

Removal Procedure




1. Open the rear compartment.
2. Remove the rear compartment weatherstrip from the pinch-weld flange.

Installation Procedure

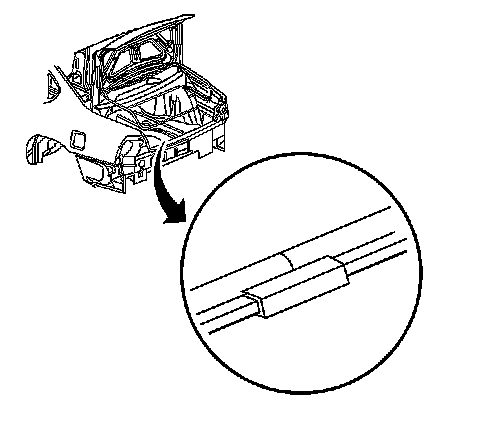

1. Align the metal joint of the weatherstrip to the center of the rear compartment lid striker.






Important: In order to minimize bulging conditions, avoid stretching the weatherstrip around the corners.

2. Install the rear compartment weatherstrip onto the pinch-weld flange, starting at the top center of the lid opening and working toward the bottom center. Use a rubber mallet in order to ensure that the weatherstrip is fully engaged to the pinch-weld flange.
3. Close the rear compartment.
