Recirculation Door Replacement
RECIRCULATION DOOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the HVAC module assembly.
2. Disconnect the electrical connector from the recirculation actuator.
3. Remove the recirculation actuator electrical harness from the recirculation housing clips.
4. Remove the recirculation housing retaining screws.

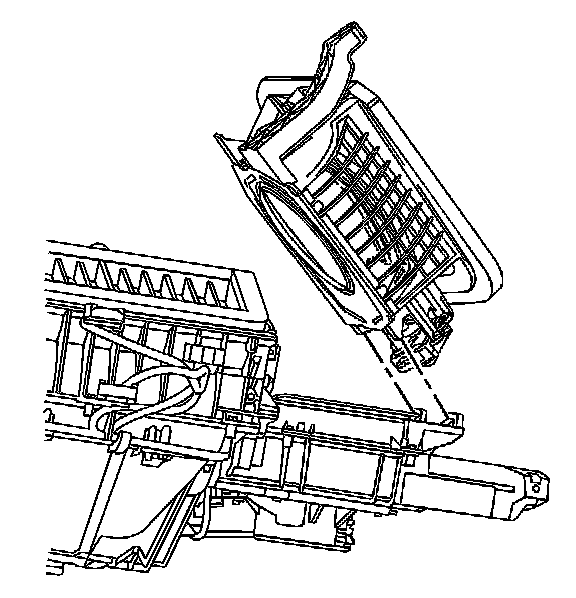

5. Remove the recirculation housing from the HVAC module assembly.
6. Remove the screws from the recirculation actuator.
7. Remove the recirculation actuator.
INSTALLATION PROCEDURE

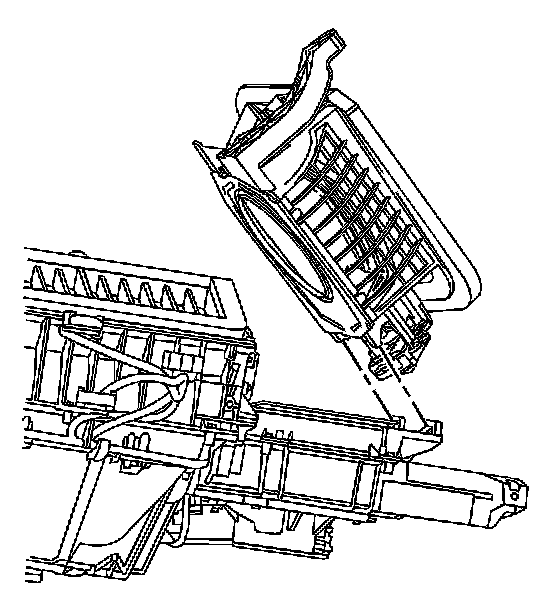

1. Align the retaining tabs and install the recirculation housing to the HVAC module assembly.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the recirculation housing screws.
Tighten
Tighten the screws to 1.5 N.m (13 lb in).
3. Align the slots on the recirculation actuator to the slots on the recirculation door shaft.
4. Install the recirculation actuator on to the recirculation door shaft.
5. Install the recirculation actuator screws.
Tighten
Tighten the screws to 1.5 N.m (13 lb in).
6. Install the recirculation actuator electrical harness to the recirculation housing clips.
7. Connect the electrical connector to the recirculation actuator.
IMPORTANT: Do not adjust any controls on the HVAC control module while the HVAC control module is calibrating. If interrupted improper HVAC performance will result.
8. Install the HVAC module assembly.
