Brake Light Switch: Service and Repair

STOP LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Remove the left instrument panel (I/P) insulator.
2. Disconnect the electrical connector from the stop lamp switch.

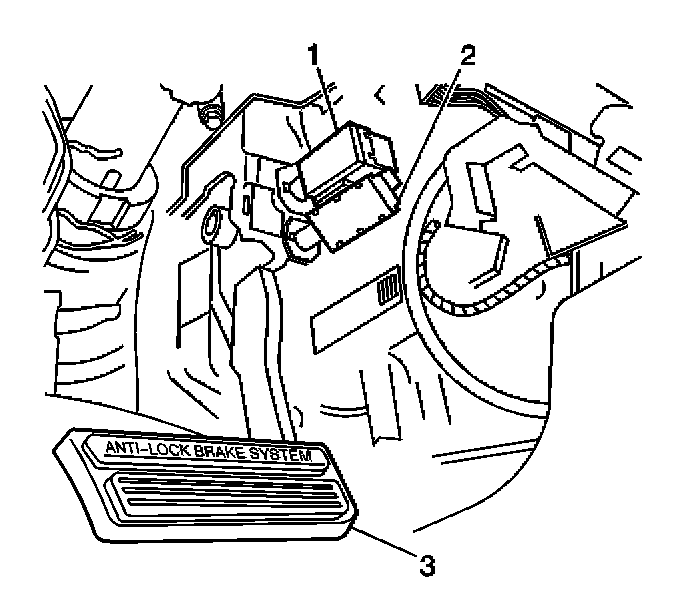

3. Remove the stop lamp switch (2) from the brake pedal bracket.

INSTALLATION PROCEDURE




1. Install the stop lamp switch (2) to the brake pedal bracket.
2. Connect the electrical connector to the stop lamp switch.
3. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment.
4. Install the left I/P insulator.
